Ribbed metal lath production line

FOB Reference Price:Get Latest Price
US $105,000-130,000 / Units | 1 Unit/Units (Min. Order)
Model Number:
ABE-MB300
Key Company Capacity
Production Capacity >
  • Employees: 101 - 200 People
  • Factory Size: 5,000-10,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 71% - 80%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
anber
Name:
Rib lath making machine
model:
ABE-MB300
Expanding speed:
280strokes/min
Mold material:
Cr12MOV
Mold driven:
Belt
Mold Travel:
16.5-23mm
Forming roller QTY:
18 groups
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
in bulk and fixed to the container
Port
shanghai
Product Description

Layout:

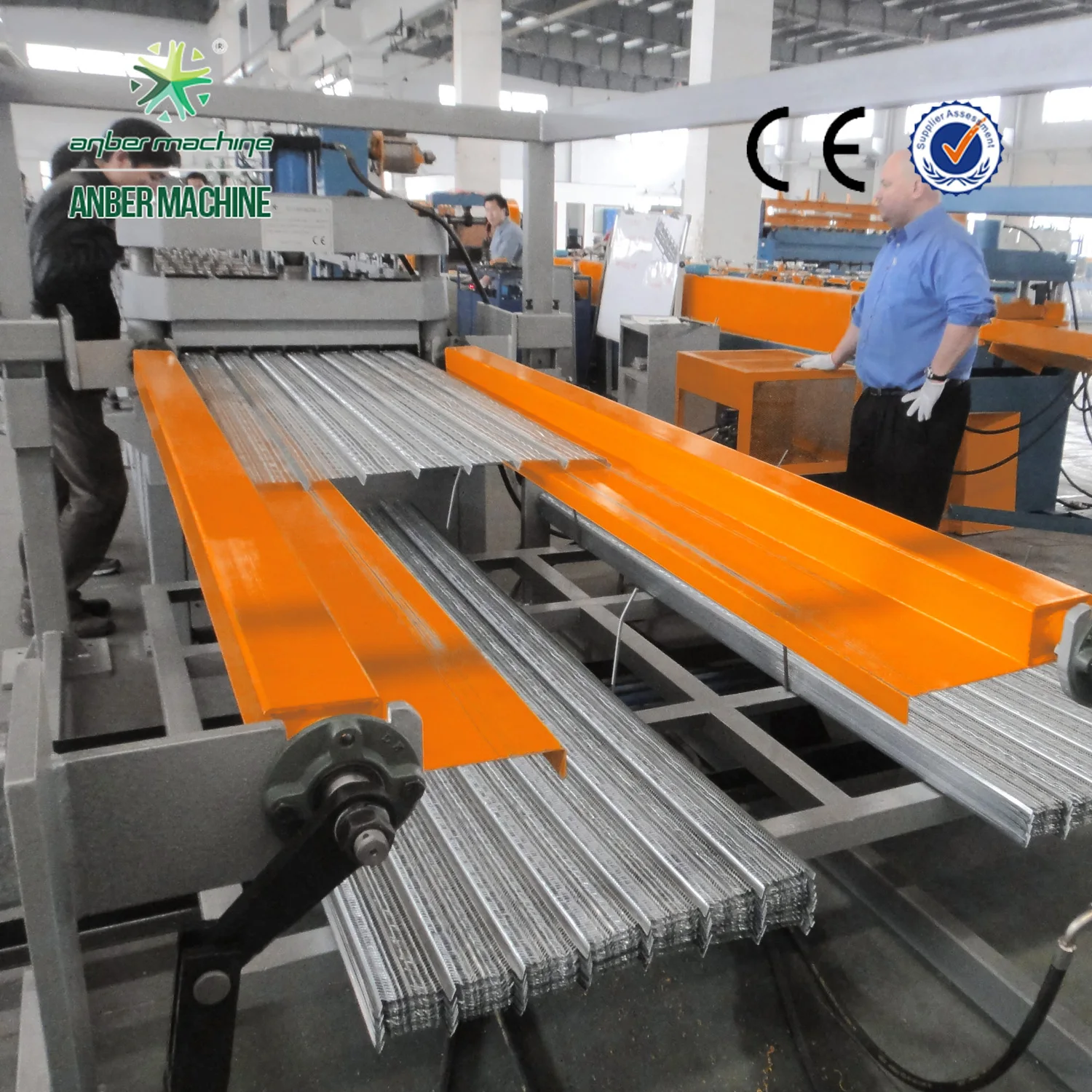

Feeding trolley - uncoiler - expanded main machine - roll profiling machine - hydraulic rib lath shearing machine - hydraulic automatic rib lath collect - control cabinet

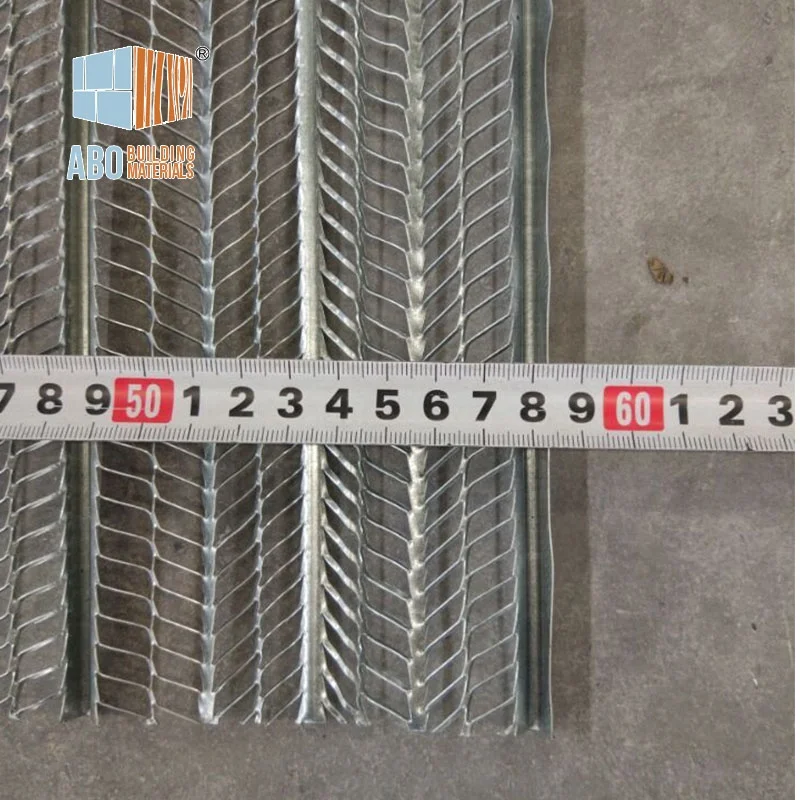

Finished Products

:Rib- lath is expanded metal-lath stiffened with longitudinal ribs. The furring design of the mesh provides efficient background plaster for construction of partition, suspended ceilings and refurbishment works. The advantage of ribbed- lath over metal-lathing is that support centers can be increased or widened.

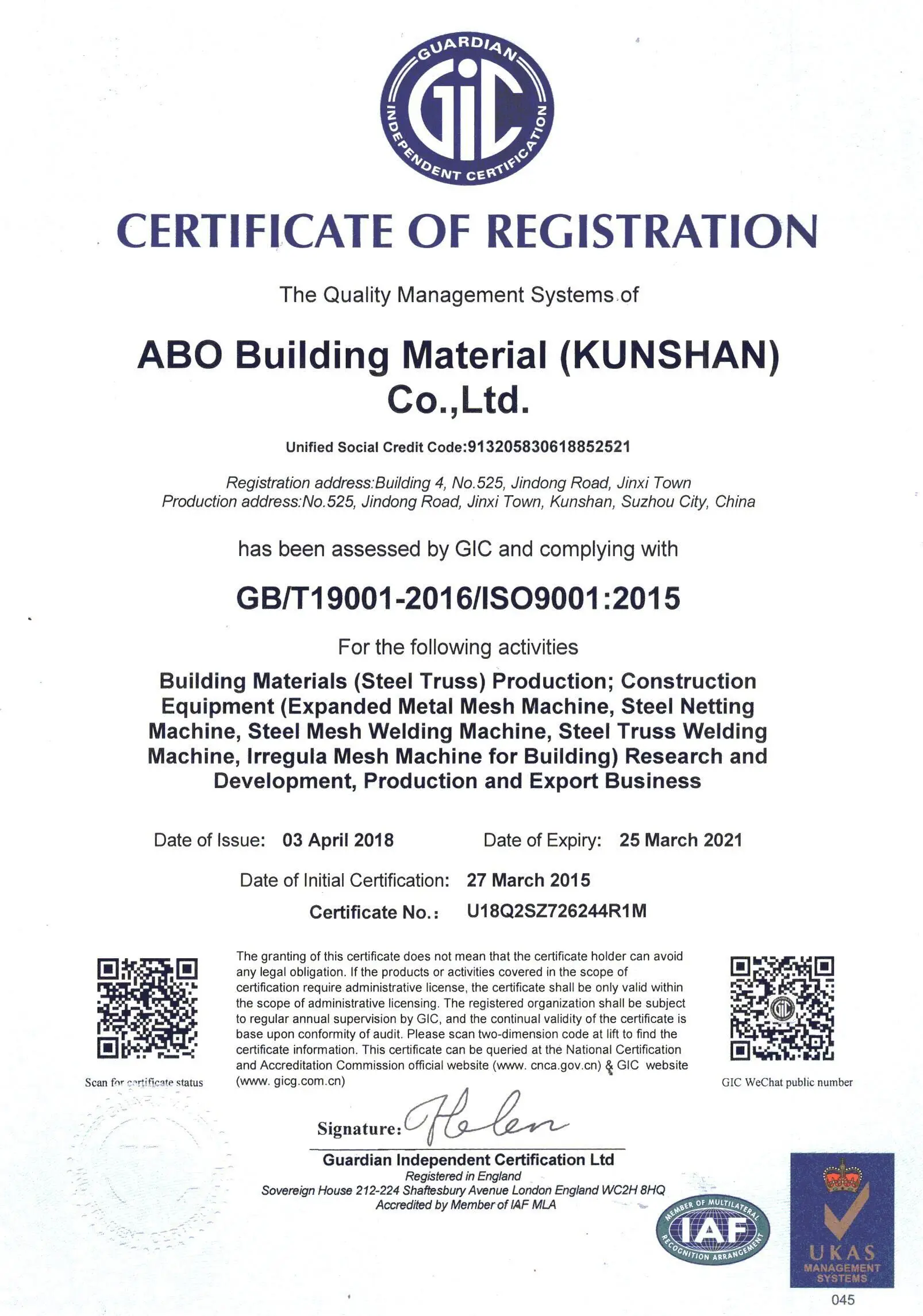

Certifications
Specifications
SPECIFICATIONS FOR MAIN PARTS OF RIB LATH MACHINE
ITEM
PARAMETER

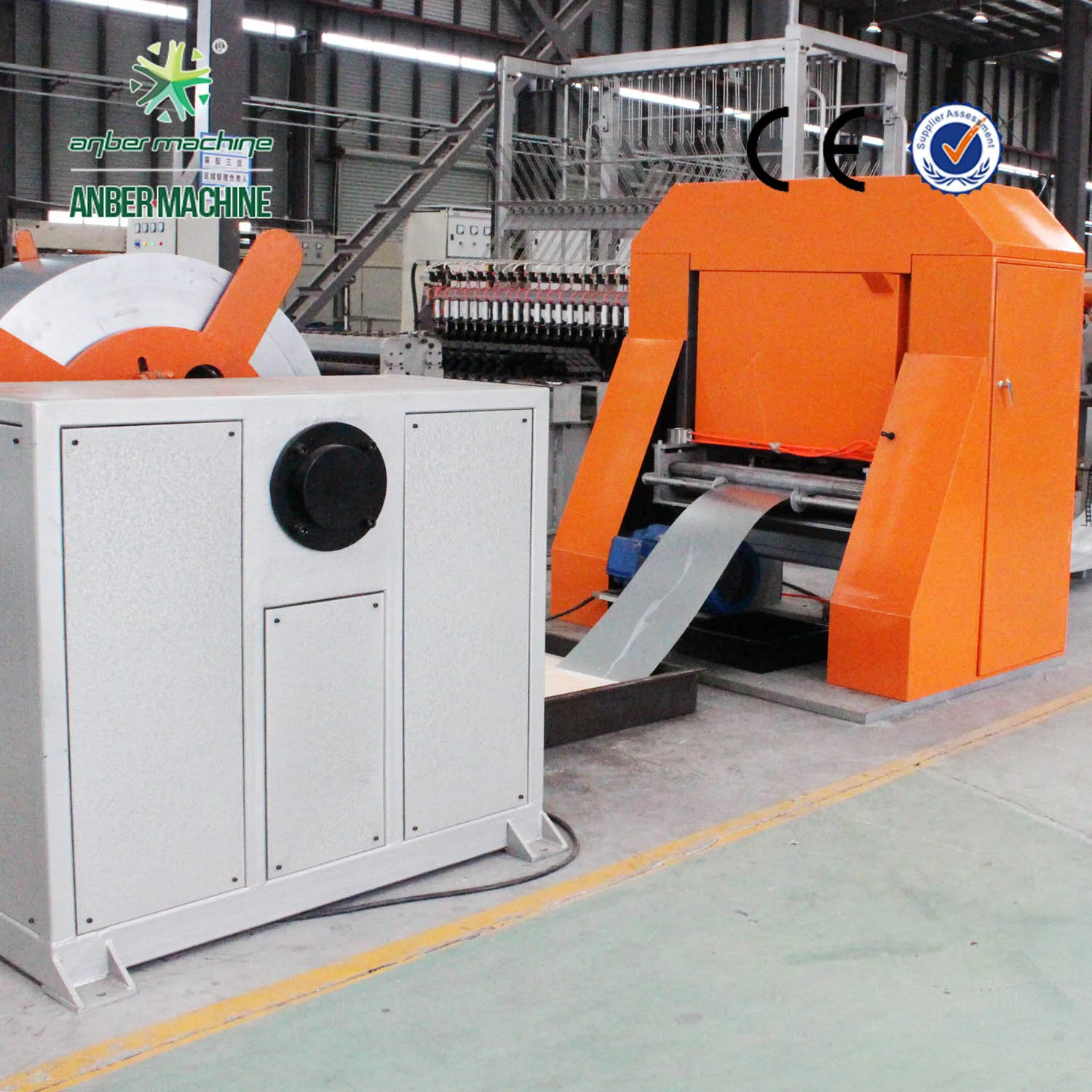

Decoiler
ID of the material
480mm-520mm
OD of the material
Max. 1000mm
Loading weight
Max. 5000Kg
Distance of the center from the ground
2200mm
Feeding width
350-450mm
Motor power
5.5KW
Reducer
BWED53
Capacity of hydraulic station
0.36cbm
Hydraulic oil
40#
Overall size
3000×4100×1700mm





Main roll forming machine parameters
Total Motor power
19.5KW
Reducer
BWED53
Capacity of hydraulic station
0.36cbm
Hydraulic oil
40#
Expanding speed
280strokes/min
Mold driven
Belt
Mold material
Cr12MOV
Hardness
HRC50
Mold Travel
16.5-23mm
Forming roller QTY
18 groups



Hydraulic cutting system
Cutting speed
5s/stroke
Mold Material
GCr12
Hydraulic station motor Power
3KW
Capacity of hydraulic station
0.1cbm
Hydraulic oil
40#
Overall size
360×1300×1500mm



Hydraulic mesh collector
Rotate angle of the support bord
90 degree
Hydraulic cylinder travel
200mm
Dia. of hydraulic cylinder
40mm
Oil capacity of hydraulic station
0.1cbm
Hydraulic oil
40#
Overall size
3350×3380×1620mm
Packing & Delivery
Related Products

1/8" rib lath

Material : 0.3-0.6mm thickness and 420mm width galvanized sheet


3/8" rib lath

Material : 0.3-0.6mm thickness and 420mm width galvanized sheet


7/8"rib lath

Material : 0.3-0.6mm thickness and 420mm width galvanized sheet


FAQ

Q:Where is ABO Building factory?
We are in Kunshan, 1hour driving from Shanghai airport.

Q:What is your factory strength?
All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

Q:Are you a trading company or manufacturer?
We a manufacturing and trading combo. Anber manufacture the machine, like angle beads machine, rib lath, etc, we ABO sell finished products, like metal lath and beads.

Q:What is your available port for shipment?
Shanghai seaport.


Q:What about the payment Terms?

Normally deposit 50% in advance.
