With the high-speed development of construction industry and the application of new technology, steel bar welded mesh, as a new type, high efficiency, energy saving, reinforced concrete structure building material, has been architecture widely recognized. It has increased the strength of structure, steel saving, labour saving and convenient transportation and construction, high dimensional accuracy, easy to specialization, large-scale production, high comprehensive economic benefits etc. Many countries have made the corresponding regulations and standardsto expand promotion of welded steel fabric in various fields, now the welded steel fabric has been widely and mainly used in construction, industrial and civil construction concrete; transportation: high-speed railways, highways, tunnels, bridges, airports; water conservancy, port, electricity, and warehouse facilities; environmental protection facilities, entertainment; coal industry, animal husbandry, forestry, husbandry, etc.

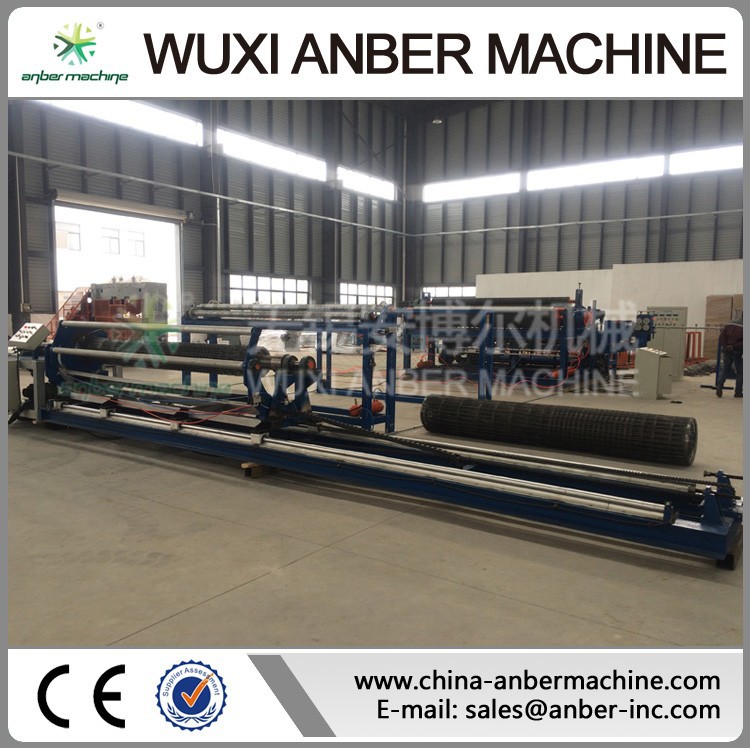

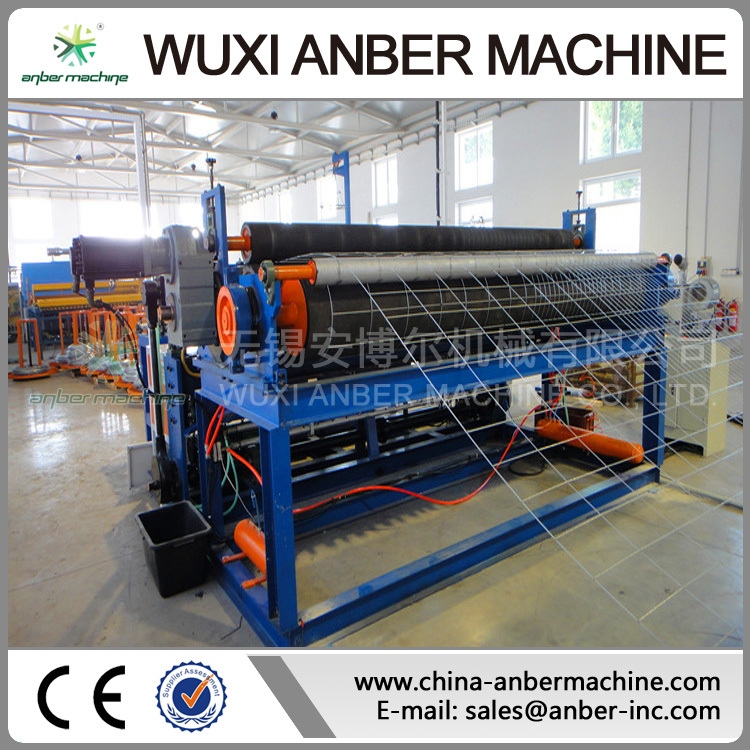

DWG - 3000 mesh welding machine (as shown in figure 1) absorbs foreign advanced experience, on the basis of advanced technology and combined with domestic actual production requirement. The machine can weld hot rolled ribbed steel bar, cold rolled ribbed steel bar, round ribbed steel bar, light round for high quality cold drawn steel cross welding, large output, high precision, easy modification, operation, low failure rate, energy-saving, low consumption and high quality. The features is as following:
It’s pneumatic welding, servo drive and PLC controled, the mesh width, mesh opening can be stepless adjusted accurately.
Set welding parameter on the touch screen to be easier for adjust.
There are buttons and switches on the operatiob panel, you can choose the welding method and control the movement
Welding wire diameter: 1.7-3.5mm
Mesh width: 3000mm
Mesh size: 50-200mm, can be adjusted
The electrode can be move, welding speed is 40 strokes/min
To promise good welding quality, the welding current, welding time, welding pressure, etc can be adjusted according to the material.
Key transmision part, working part, electric part, penumatic part are apply international brand, can support long service life and high accuracy.
Welding transformer, electrode, secondary wire and main circuit of SCR control system are water cooled.
According to the power supply, you can choose one-time welding or 3-time welding.
There is less spark and low noise in the welding proceed.
Easy operatiob and maintain.
Match with basement, easy for installation
Rated power (welding main machine)
Max. Current when weld
Max. Welding width
Width can be adjusted
Line wire space
Can be adjusted
Cross wire space
One as spare
Welded wire diameter
Line wire: Φ4~Φ6mm
Cross wire: Φ6~Φ10mm
There is no dust or rust, etc on the wire surface
3-times welding will decrease the speed
Cooling water pressure
Air supply pressure
Compressed air consumption
Line wire feeding method
Wire coil straighten auto and feed in with the rubber roller
Computer operated servo motor to drive the rubber roller
Cross wire feeding method
Wire decoiler, striaghtening, feeding, cutting and wire drop automatically
Computer operate the wire feeding system
Working ambient humidity
Working ambient temperature
DWG-3000 mesh welding machine sizes
Installation space: about 30m*7m

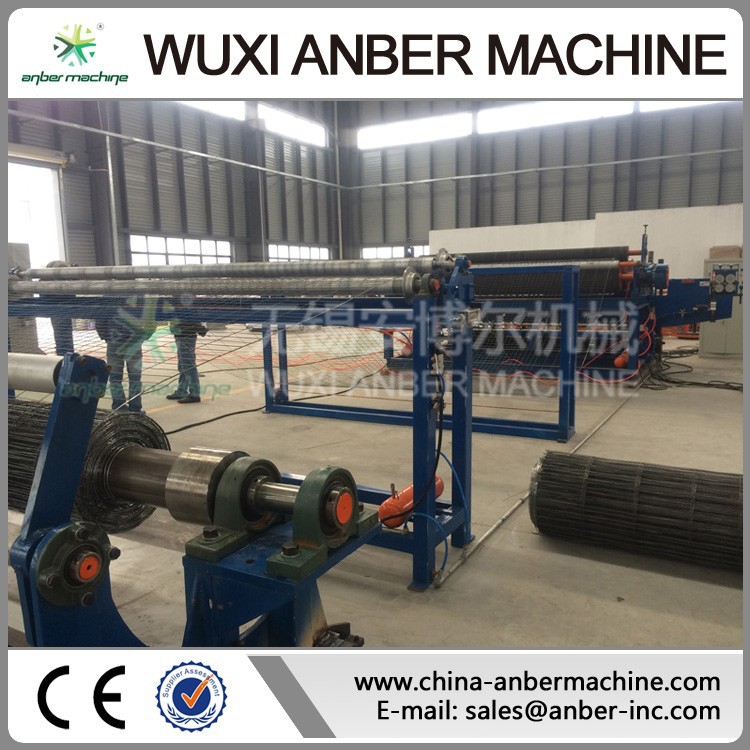

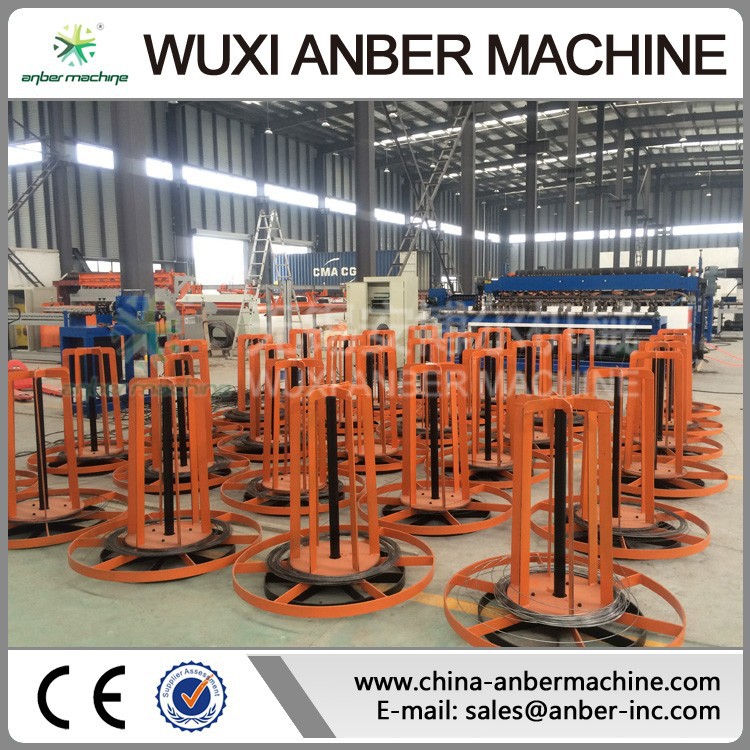

Line wire pay-offs (L*W*H): ~4000×5000×1100mm
Line wire straightening sturcture (L*W*H): ~600×900×1200mm
Welding machine (L*W*H): ~5200×1300×1800mm
Rubber roller mesh pulling system (L*W*H): ~4700×1800×2000mm
Mesh length sensor part (L*W*H): ~3300×500×1500mm
Mesh clampsing cylinder control frame (L*W*H): ~3300×600×1800mm
Mesh recoiling part (L*W*H): ~52000×1300×800mm
Wire feeding assist part (includes on-off control part)
Cross wire lift frame part
Control cabinet (L*W*H): ~ 1200×600×2200mm
Control panel (L*W*H): ~500×420×1080mm
Others: like air pipe, cross wire feeding frame, spare parts, etc
Strength standard value: 450-650 MPa, elongaration: δ10= 6-12%
There is no dust or insulation material, etc which will inflent the welding quality
Material length tolerance should match with welding technology;
Welding material should match with related welding standard
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment. To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
