Render Stop Bead/Rend Stop Metal Bead/Render Stopping Bead

  • 1 - 999 Sheets
    US $2.00
  • >=1000 Sheets
    US $0.90
Material:
Galvanized Plate
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ABO
Model Number:
RSB
Color:
White
Application:
Protecting
Function:
Protect Wall
Length:
2.5m-3m
Size:
Customers' Drawings
Thickness:
0.30-0.60MM
Type:
Expanded Metal
Width:
10/20/30 /40/50 Mm
Usage:
Prevent Injuiry
Sample:
Avaliable
Supply Ability
Supply Ability:
10000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
50 sheets\bundles with sheet pallet or carton boxes with steel pallet, according to the customer requirements.
Port
Shanghai
Product Description

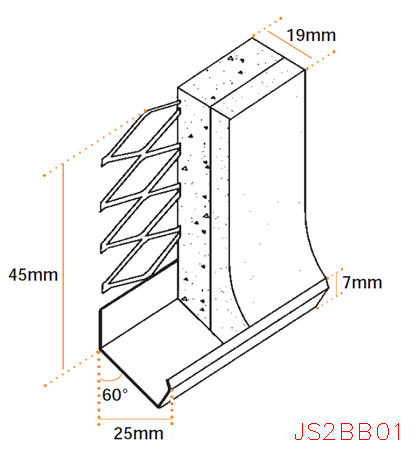

Also knows as Bell Cast Bead it forms and protects the lower edge of external render. Designed to deliver a general gradient at the base of the render. It is used above doors, windows to also rainwater to drain clear of the underlying substrate. Also Available with weep holes. They are mainly used in building materials and plasterwork for outside or corner of concrete columns of wall.

4126



MATERIAL:

0.3-0.8mm stainless steel or 0.3-0.8mm galv. Steel

Product standard:

BS EN 13658 - 1 and 2: 2005

Material standard

Pre-Galvanized
BS EN 10346 (formerly BS EN 10327)
ASTM A653 (revised ASTM A527)
Stainless Steel
BS EN 10088
ASTM A666
Alu-zinc Coated Steel (Galvanum)
ASTM A875
ASTM A792



Specification



Reference

Width of Wing(mm)

Length(mm)

Plaster Thickness

(mm)

RSB1624

45

2400

16

RSB1630

45

3000

16

RSB1924

45

2400

19

RSB1930

45

3000

19



Note:

All dimensions can be adjusted according to the customer requirements.

Also available in Aluminum.

Mesh Aperture: 5*15; 10*20; 10*30; 12*25 (mm)



Competitive Advantages

Good and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Earth-friendly Products



Recommended installation method

 Beads may be trimmed to length using shears across the wings and a fine-toothed saw across bead nose.

 1. Using galvanized or stainless steel nails to fix the angle bead at a interval of about 600mm. When nailing to the solid background, the line of the bead will follow the line of the background.

 2. Pressing the bead onto dabs of the similar material as the undercoat; the interval of the dabs should be maximum 600mm. This way will smooth minor irregularities in the line of the background, although the line of the bead will tend to generally follow the line of the background.

 This method will smooth the irregularities in the line of the background.

 3. When beads are used with metal lath backgrounds, galvanized or stainless steel nails are used to fix the beads position. Soft galvanized wire or stainless steel wire should be used to match the bead and the lath materials. The wires should be twisted tightly and the ends bent away from the finished face of the coating.
