Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: ABO
  • Model Number: TCM-22
  • Material: Galvanized Sheet
  • Application: Wall
  • Length: 2.4m
  • Raw material thickness: 0.3mm
  • mesh size: 25*12mm
  • strand width: 1.5mm
  • wing width: 22mm*22mm
  • angle value: 70-85°

Packaging & Delivery

Packaging Details carton box or steel pallet
Delivery Time 30days
Product Description



For single Coat Plaster Thin Coat Angle Bead is rigid but light weight, the drywall bead is designed for drywall, block and slab work. Provides excellent adhesion and reinforcement, with the revised 85°angle, allows greater scope for on-site adjustments and setting.

Corner beads are either made of perforated metal or expanded metal. While both are widely used, perforated metal beads offer stronger trimming compared with expanded metal beads. Perforated angle beads have more uniform plate thickness, hole sizes and easy to keep its original shaping.

Product Overviews






Detailed Images

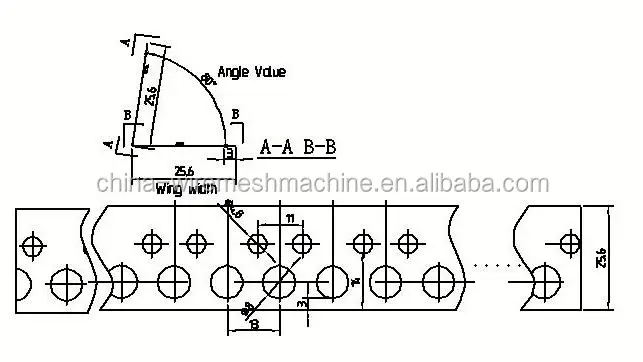

Specification



Reference

Width of Wing

(mm)

Length

(mm)

Degree Angle

Plaster Thickness

(mm)

TCM-22

22

2400/2700/3000

70°-85°

3

TCM-24

24

2400/2700/3000

70°-85°

3

Note:

All dimensions can be adjusted according to the customer requirements.

Also available material in Aluminum .

Functions



The productions are mainly used for reinforcement purposes and for plaster or render embracing. Meantime, it provides good finishing and stronger edges, that can help to improve the life time of any buildings. Angle Bead are resistant to chips, cracks and impact damage. It protects the corner and edges and offers good shape.

The good performance of the item:

Galvanized finish to resist corrosion;

Perforated wing increases bond;

Reinforces plaster edges to prevent accidental damage;

Can be fixed with plaster, adhesive or mechanical fixings;

Packaging



Recommended installation method

Beads may be trimmed to length using shears across the wings and a fine-toothed saw across bead nose.

1. Using galvanized or stainless steel nails to fix the angle bead at a interval of about 600mm. When nailing to the solid background, the line of the bead will follow the line of the background.

2. Pressing the bead onto dabs of the similar material as the undercoat; the interval of the dabs should be maximum 600mm. This way will smooth minor irregularities in the line of the background, although the line of the bead will tend to generally follow the line of the background.

This method will smooth the irregularities in the line of the background.

3. When beads are used with metal lath backgrounds, galvanized or stainless steel nails are used to fix the beads position. Soft galvanized wire or stainless steel wire should be used to match the bead and the lath materials. The wires should be twisted tightly and the ends bent away from the finished face of the coating.

Related Products

 We can also produce various angle bead, please review pictures as below,









Company Information

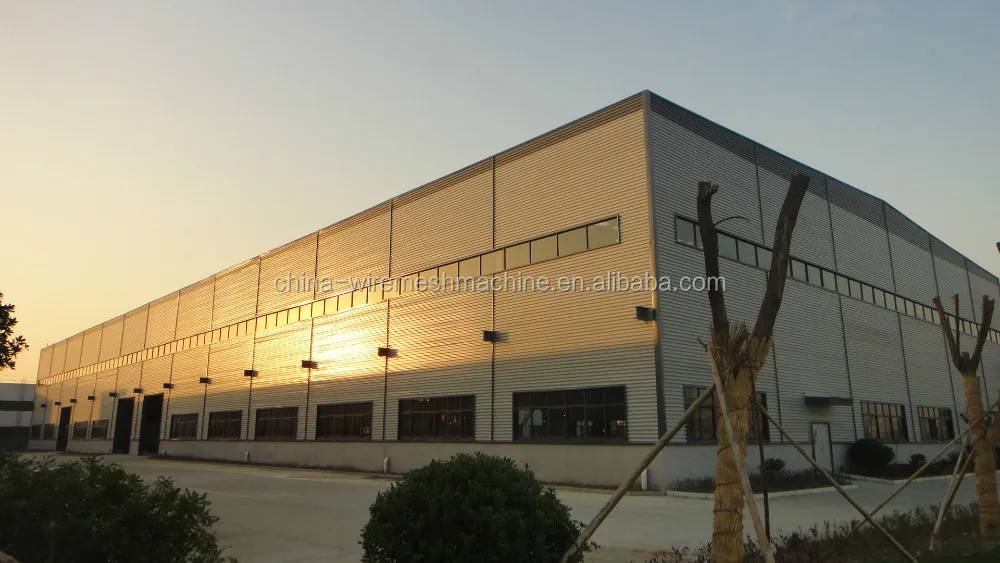

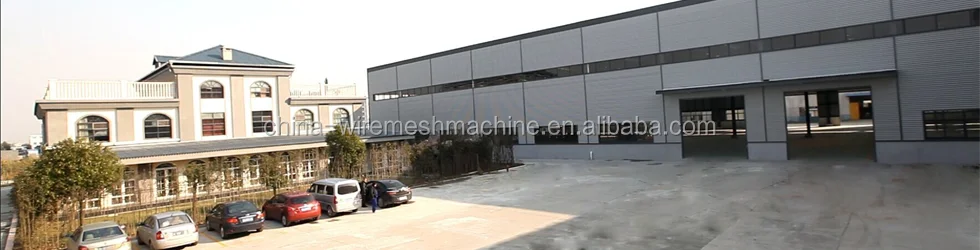

ABO Building Materials (kunshan) Co., Ltd. is a professional building mesh manufacturer located in Kunshan, Jiangsu province, China, near to Shanghai Port, one of the largest shipping port in China. We have strong R&D team, first-class production line and advanced inspection devices.
ABO has occupied 20000 square meters, and also has got 100 acres in the industrial zone for the future expansion.
Our company provides a variety of high quality building mesh, like Expanded Metal mesh & Plaster Mesh, Angle Beads, 3D Truss Grider, Architrave Beads, Rib Lath and specialized building materials. Our products have solden to Europe, America, Africa, Japan, etc, and has been credited by International authoritative product testing. The quality system is accredited through ISO 9001:2008, assuring our products high quality. We also have produced the high speed machines to match with the big requirement of the expanded metal lath, plaster mesh, angle bead, truss girder, rib lath, etc. ABO has hundreds of patents for the technic and about 60 patents for the product invention.
With self-made high speed machine, good managemeng system, higher technic and exelent service, we can get higher productivity to match with the customer and market reqruiement.
A professional sales and technical team are on hand to offer advice.






Add: No. 525, Jindong road, Jinxi town, Kunshan, China
Tel: (+86)-510-88239310/88239309
Fax: (+86)-510-88237950
Web: www.abosteel.com

Wechat/ WhatsApp : +86 13921196631
