Expanded Flange Angle Bead/ Corn Bead

FOB Reference Price:Get Latest Price
  • 1000 - 9999 Pieces
    US $0.35
  • >=10000 Pieces
    US $0.30
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ABO
Model Number:
Angle Bead
Material:
Galvanized Plate
Size:
50mmx50mm
Steel thcikness:
0.4mm
Application:
used in architecture
steel zinc coating weight:
Z40
SupplyAbility
SupplyAbility:
30 Ton/Tons per Month
Packaging & Delivery
Packaging Details
carton box or steel pallet
Port
Shanghai port
Lead Time :
30days
Product Description

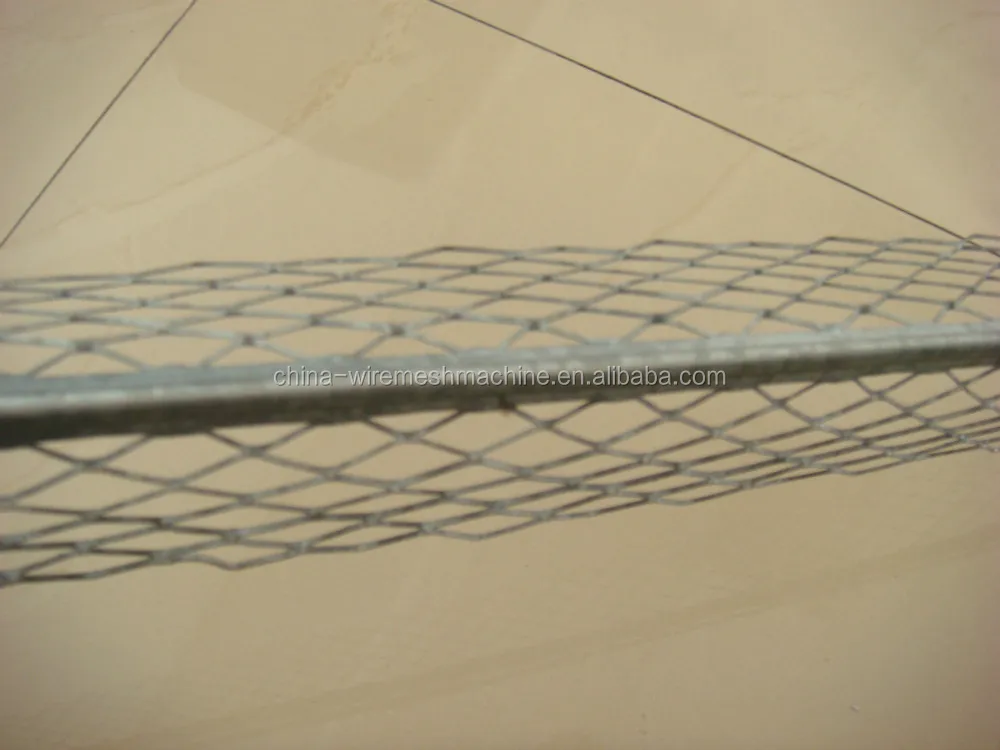

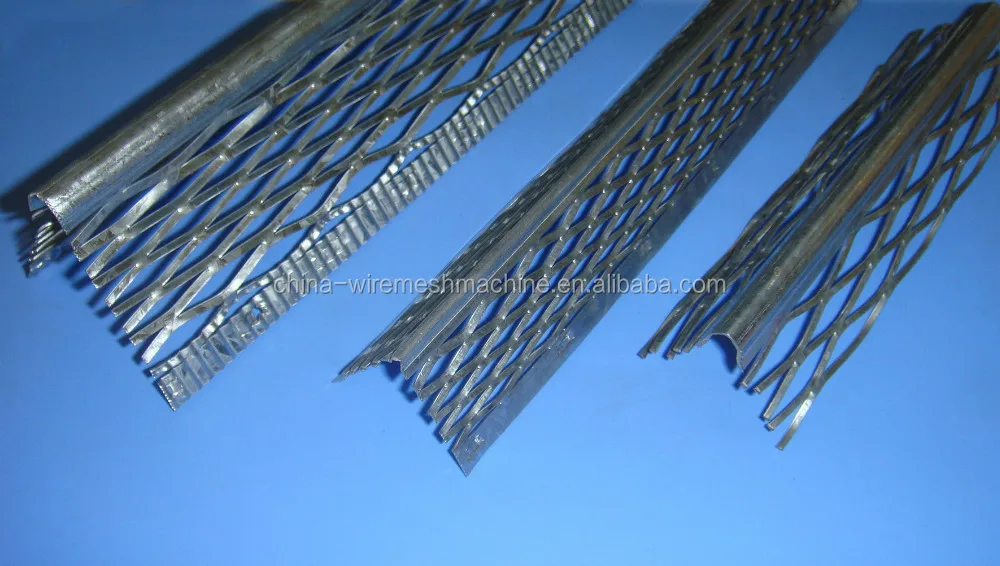

An expanded flange corner bead with extra long expanded flange. It has a steel rib running the length of the bead to provide nail holes and extra rigidity. Expanded Metal is a mesh formed from a single piece sheet metal. The sheet of solid metal is slit and stretched with each stroke of a die which forms a raised diamond pattern. The pattern changes by gauge and type of material and the size of the diamond. The mesh can be pressure rolled at so that the strands are in the same plane as the sheet.

Packaging & Shipping



Specification



Reference

Width of Wing

(mm)

Length(mm)

Degree Angle

Plaster Thickness

AB-F32

32

2400/2700/3000

70°-85°

12-19

AB-CF32

32

2400/2700/3000

70°-85°

12-19

AB-F43

43

2400/2700/3000

70°-85°

12-19

AB-CF43

43

2400/2700/3000

70°-85°

12-19

AB-F48

48

2400/2700/3000

70°-85°

12-19

AB-CF48

48

2400/2700/3000

70°-85°

12-19

AB-F63

63

2400/2700/3000

70°-85°

12-19

AB-CF63

63

2400/2700/3000

70°-85°

12-19

AB-F70

70

2400/2700/3000

70°-85°

12-19

AB-CF70

70

2400/2700/3000

70°-85°

12-19

  Drawing of the product
