Automatic Heavy Duty Expanded Metal Mesh Machine

FOB Reference Price:Get Latest Price
$42,000.00 - $46,000.00 / Sets | 1 Set/Sets (Min. Order)
Wire Diameter:
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Model Number:
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
1 Year
Product name:
Expanded Metal Mesh Machine
Max. with of expanding material:
Max. thickness of material:
80 strokes/min
Overall size(L*W*H):
about 14000kg
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed by shrink plastic film and container
Any port in China
Video Description

Product Description

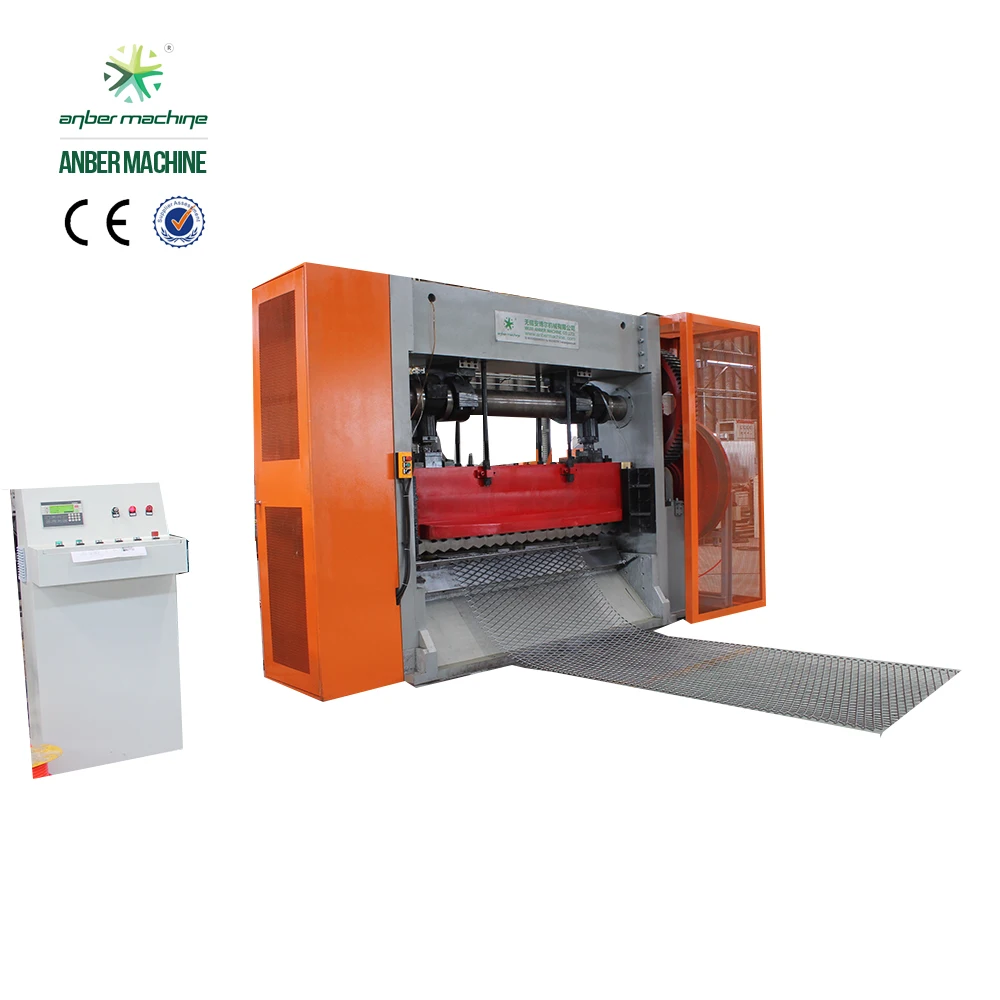

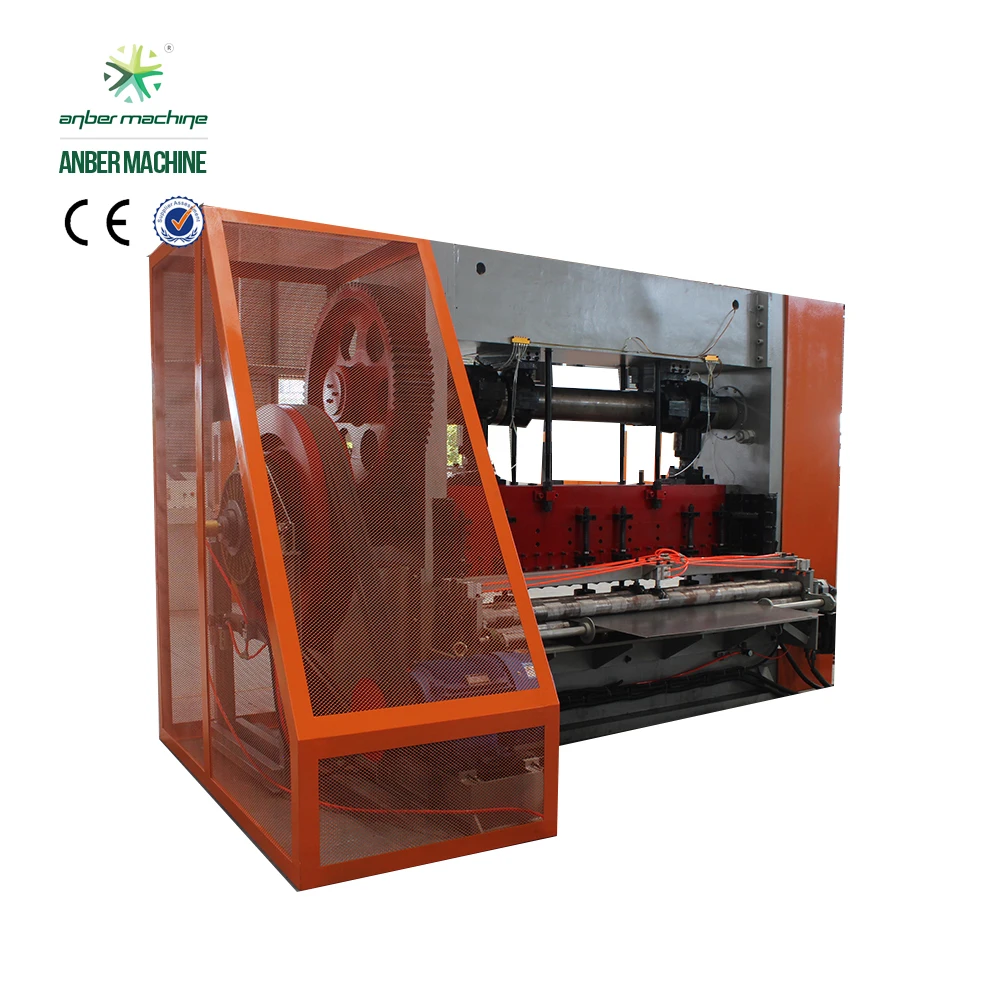

2.0M Expanded Metal Mesh Machine(Mold Moving Type)

What is expanded metal mesh?

Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.

Expanded Metal Mesh Production Process

1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.

2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.

3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.

4. Using the unique shearing and streching process means very little waste is created. the metal is sheared and then streched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.

Description of Expanded Metal Machine

This expanded metal mesh machine can process cold-rolled steel, aluminum material to expanded mesh with hexagonal, diamond, half round, etc. which are used for  building, hardware, machine tool, electric industrial, protective and decoration of household electrical appliances.

Material strength is under 450N/mm2, material with elongation over 25%.

Expanded process is finished by crankshaft connecting rod system, moved by cam,feed by stepping motor, the feeding distance can be easily adjusted. This machine has characteristics of structure, easy operation and steady performance.

Main Technical Parameters

5T Auto Decoiler

Max. Loading weight: 5T

Motor power: 1.5KW

Max. Width: 1500mm

I.D.: 515-670mm, adjustable

Overall size of machine(L*W*H): 3150*1630*1750mm

Machine weight: 2.1 tons


ABE-6.0-2000 Expanded Metal Mesh Machine

Nominal Pressure Force: 100 Tons;

Feeding by coil and sheet;

Max. Width of the steel plate: 2000 mm;

Thickness of material: 6.0mm for mild steel

Max. Strokes per minute: 80 strokes/min;

Motor power: 30 kw;

Max. LWD: 160 mm;

Overall dimension of main machine (L*W*H): 4150*1900*2570mm;

Machine weight: about 14 tons.

Automatic lubrication system;


2M Expanded Mesh Leveling Machine

Leveling roller number: 7 pcs+2 pcs feeding roller

Roller diameter: 150mm

Material of roller: 40Cr

Hardness of roller: HRC58°

Motor power: 7.5KW

Overall size(L*W*H)= 2600*1380*1450mm

Machine weight: 4.0T


Company Information

Our ABE series expanded metal mesh machines are revolutionary products. We adopt automatic feeding device by servo or step motor, automatic lubrication system and PLC control system with famouns brand such as Siemens, Mitsubishi, etc. Electric elements use Schenider brand.

We have various different type of expanded metal machine, the specification from 6.3 tons to 260 tons. Expanding thickness of material can be from 0.1 to 10mm and mesh width from 600mm to 3200mm.

Our designer adopts 3D modeling design to make sure our machine have perfect performance. Our factory always focus on the machine's innovation. Base on our customer value feedback, we keep updating our machine design. We ensure your investment can get value back.


Our Service

1. How long will your engineer reach our factory?

Within one week after machine arrival your factory.

2. How many days will you finish installing ?

Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.

3. What should we charge for your engineer?

You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.

4. How long is your machine's warranty period?

All our machine have one year guarantee, starting from the machine finished installation.

5. How could we do after one year warranty period?

We can also do service for you, but you need pay for spare parts and engineer's cost.

6. How could we do if the parts broken within warranty?

We would express the free replacement parts during the warranty date.

7. Does your engineer understand English?

Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.

8. How do we solve the machine problem after your engineer leaving?

Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.

9. How many worker do we need running those machines?

One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
