Full automatic steel wire mesh welding machine

FOB Reference Price:Get Latest Price
US $180,000-220,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Anber
Model Number:
ABE-3/6-2400
Panel max width:
2400mm
Panel max length:
6000mm
Line wire spacing:
100mm
Cross wire spacing:
50mm,freely spacing
Wire diameter:
3-6mm
Feeding way:
In coils
welder point:
24 points
Max. welding speed:
55-70 meshes/minute
Automatic:
Full
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
Container shippment.
Waterpoof and good securing for long voyage.
All parts will be wrapped by plastic film.
Bracket ,Auxiliary equipments and spare parts will be packed in carton box.
The main machine will be fixed in the container by steel wire rope to make it stable.
Port
Shanghai
Lead Time :
3 months from receipt of down payment or L/C



Layout of the full production line:

The wire mesh welding line can both feed in coil and can put out in coils or in pieces.

24 sets of line wire pay off -----Line wire end supervision station --- 2 sets ofX-levels line wire straightening unit ---- line wire straightening system --- line wire pulling system ---- line wire accumulator --- cross wire cut---- welding system----mesh converting table ---- mesh cutting machine –mesh stacker--- mesh coiling machine-----electrical controlling cabinet

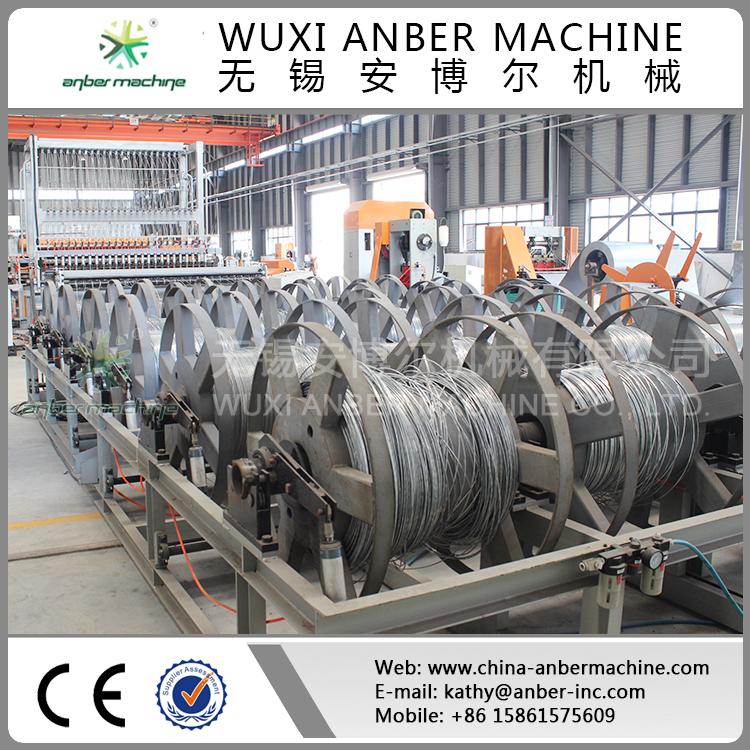

1. wire pay-off

24 sets of wire pay off with 24 spool stands (line wires from coil/ spools of 1000 Kg weight each)

ID (inner diameter): 600mm or according to your requirement

OD (outer diameter): 800mm or according to your requirement

Size:5MX7MX1.2M

.jpg

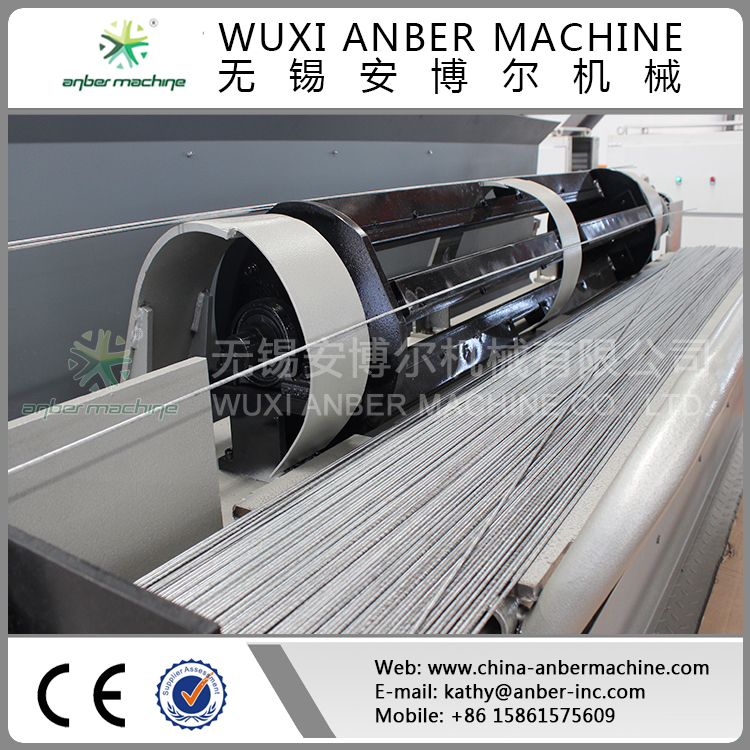

2. Line wire straightening (for perpendicular)



It is easy for adjusting the wire straightening. straightening units for line wire.



Wire diameter: Ø3mm - Ø 6mm.



3. Line wire straightening (for level)





4. Line wire feeding to accumulator




5. Line wire accumulator (Line wire pulling station with loop/line wire balancing system)



0372.jpgline wire accumulator: Ø 3mm - Ø 6mm. 24 wires CNC automatic feeding and adjusting



Each set can be controlled separately.



Emergency stop switch, keep personnel and equipment away from damage.



Overall 24 sets line wire pulling system



Each set can be controlled separately



All pneumatic parts of the accumulator uses branded systems for easy replacement and maintenance.



All steel structures of the accumulator is hardened using the heat treatment technical.




6. Cross wire feeding hopper:

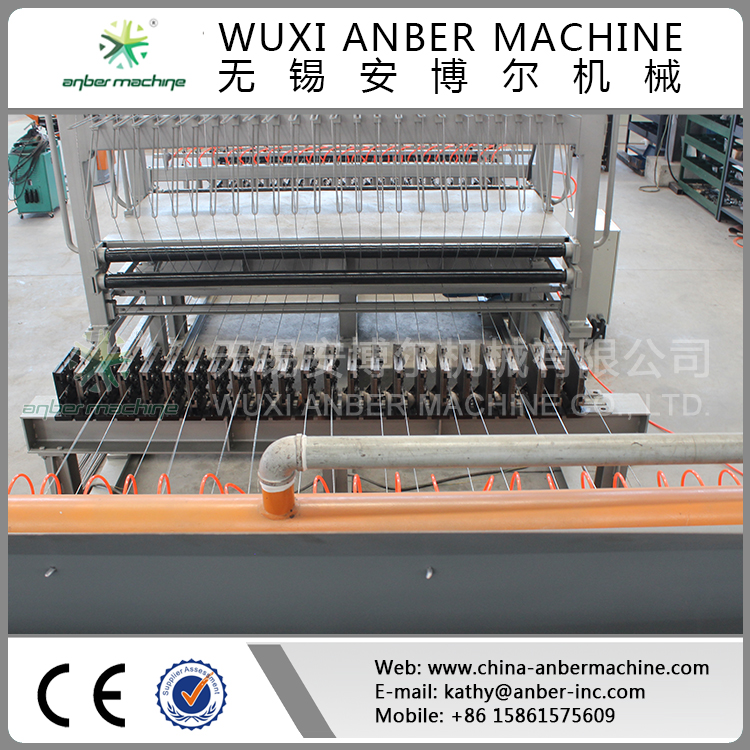

7. Welding mesh machine














Wire space: 100*100mm, according to your requirement, can be adjusted.



Wire mesh welder with step less adjustable cross and line wire pitch, the line wire space is adjusted by hand; the cross wire space is adjusted by the electrical controlling cabinet.



The welding system is designed for smooth and ribbed wire



Max width of the panel mesh

2400mm

Max length

6000 mm

Line wire spacing

100mm

Cross wire spacing

50mm, freely programmable spacing

Wire diameter

Line wire

3-6mm

Cross wire

3-6mm

Feeding way

Line wire

In coils

Cross wire

In coils

Number of welder point

24 points

Max. welding speed

55-70 meshes/minute

Water Cooling Transformer

6X125KVA

Power

380V, 50Hz

Air consumption

0.8Mpa, 2m3/min

Cooling water consumption

0.3Mpa, 3m3/min

Machine overall dimension

60m(L) × 8m(W) × 5m(H)

Machine overall weight

25,000Kg

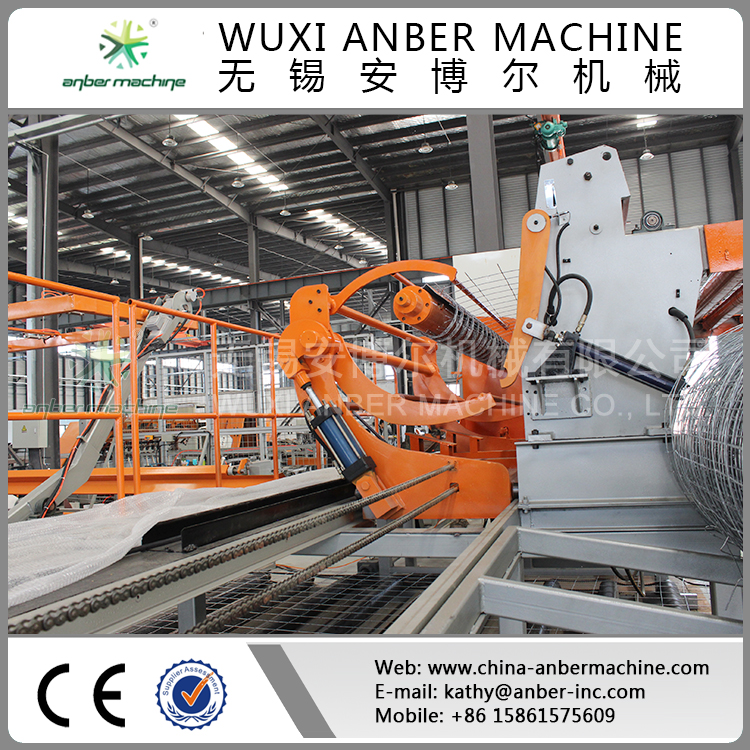

8. Hydraulic mesh coiling machine




Saving man energy



The coil can be push to the other side, and roll down automatically.



Roll width: 2400mm



In side diameter: 220mm



Loading Weight: 500kg.





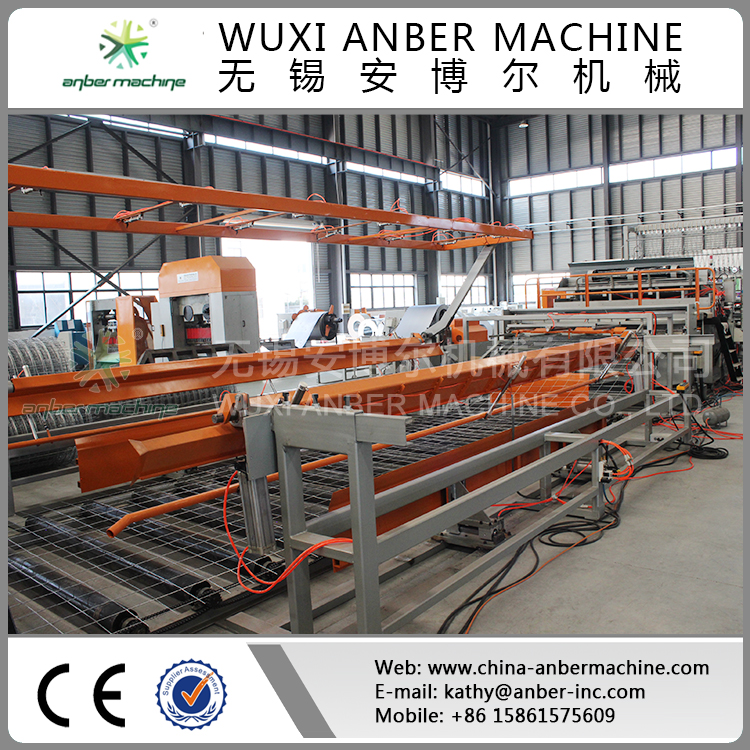

9. mesh collectiong table and flipper

 .jpg

10. Controlling system




1 units of servo control system



CNC & Display unit from HUICHUAN



Other electrical component from Schneider



The language of the control in English language and with computer





Packaging & Shipping

.jpg

Our Services
 Warranty
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment.
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.

Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
