Spiral coiling Machine Hexagonal Gabion Mesh Spring Coiling Machine

  • 1 - 4 Sets
    $4,067.00
  • >=5 Sets
    $3,196.00
Model Number:
ABE-DH-2200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
ABE
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Online support
Warranty:
1 Year
Color:
gray
Size:
2200mm X 900mm X 1500mm
Weight:
3t
Supply Ability
Supply Ability:
30 Box/Boxes per Month
Packaging & Delivery
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated



Description

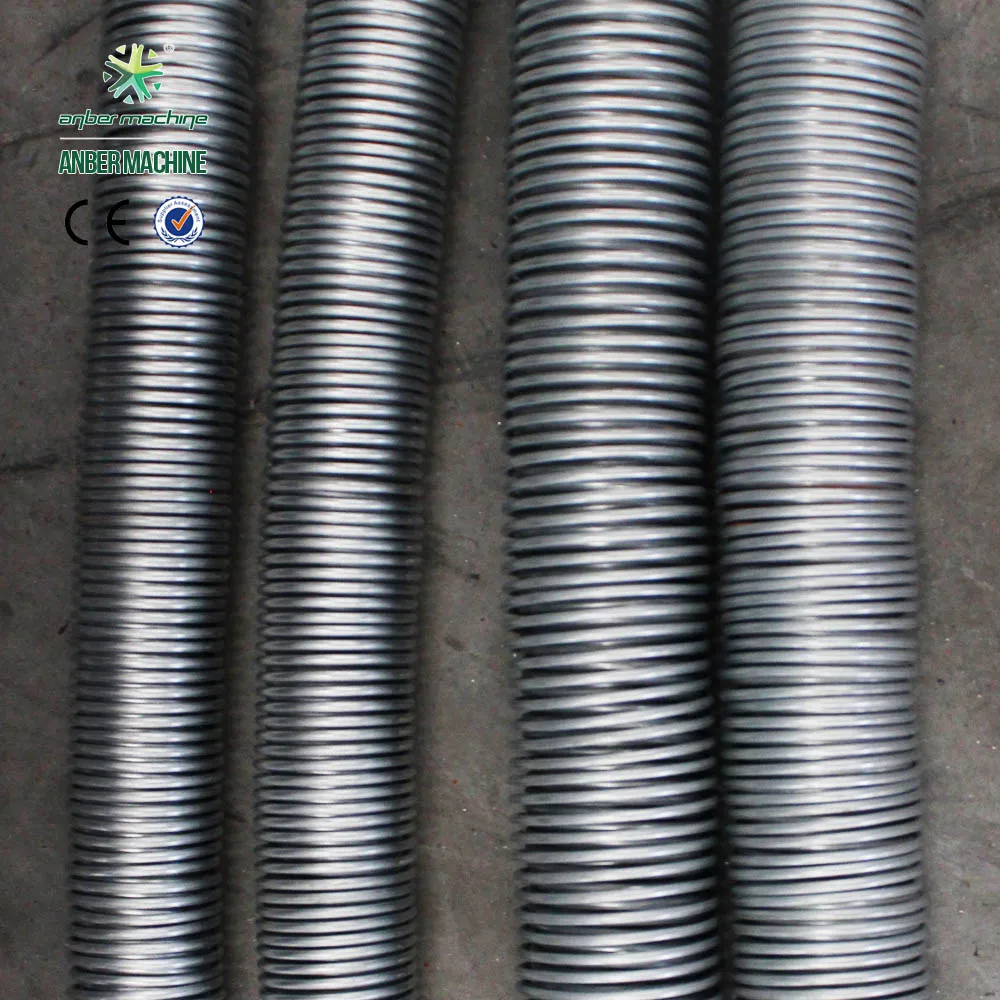

Coiling Machine serves to make wires into form of coils to be used as weft wires, on the Wire Netting Machine for purpose of producing hexagonal screens.

One of two wires for making mesh in wire netting making machine must be loaded into spring tube in spring shape in order to make wire netting in normally.

Therefore, the spring coiling machine can have wire coiled to spring shape, and the spring can be collect in more than one layers according with size of spring tube to satisfy wire netting making require to wire.



parameter



Diameter of spring wire: Φ1.2~Φ.4.4mm

Diameter of spring bar: Φ25mm,

Quantity of spring bars: 6

Rotational speed of spring bar: 450 r/min

Interior diameter of spring: Φ30mm

Major diameter of spring: Φ40~Φ60

Quantity of spring layers: 2-4

Motor power: 2.2KW,

Overall size (length * width * height):2200 X 900 X 1650(mm)

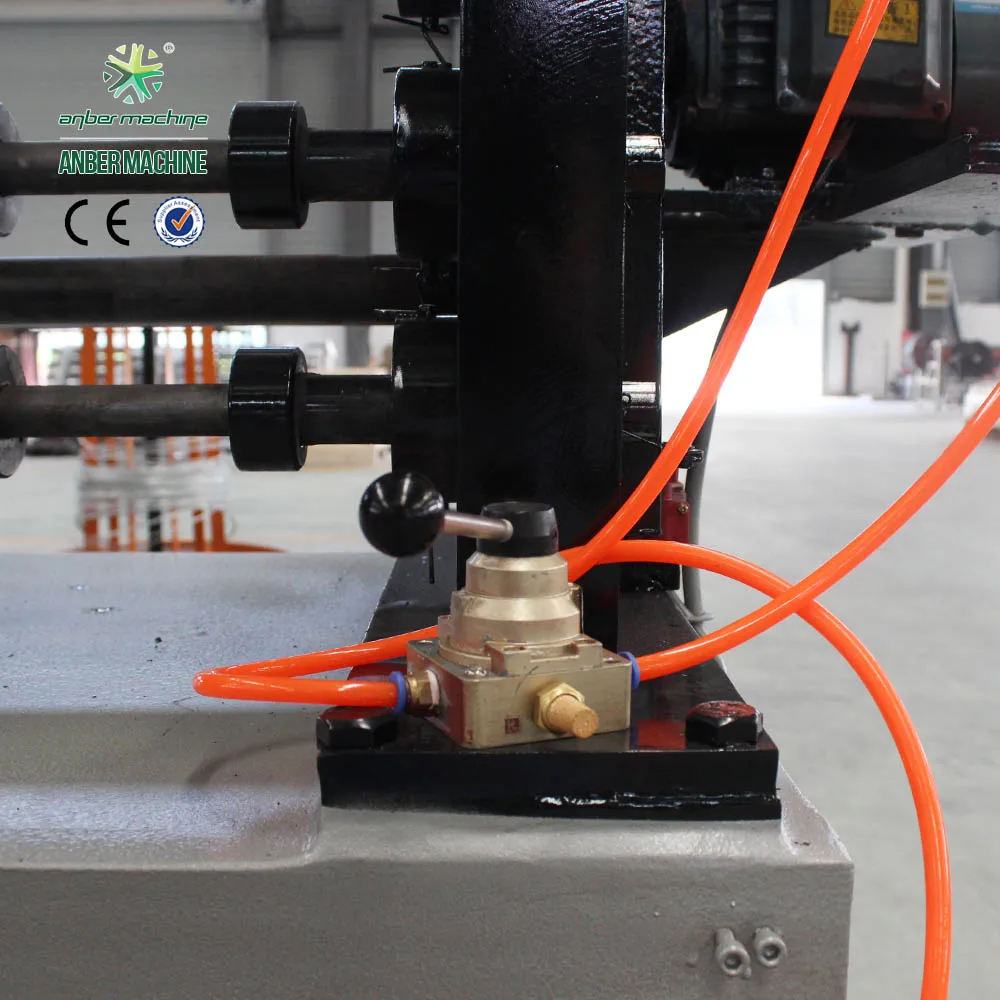

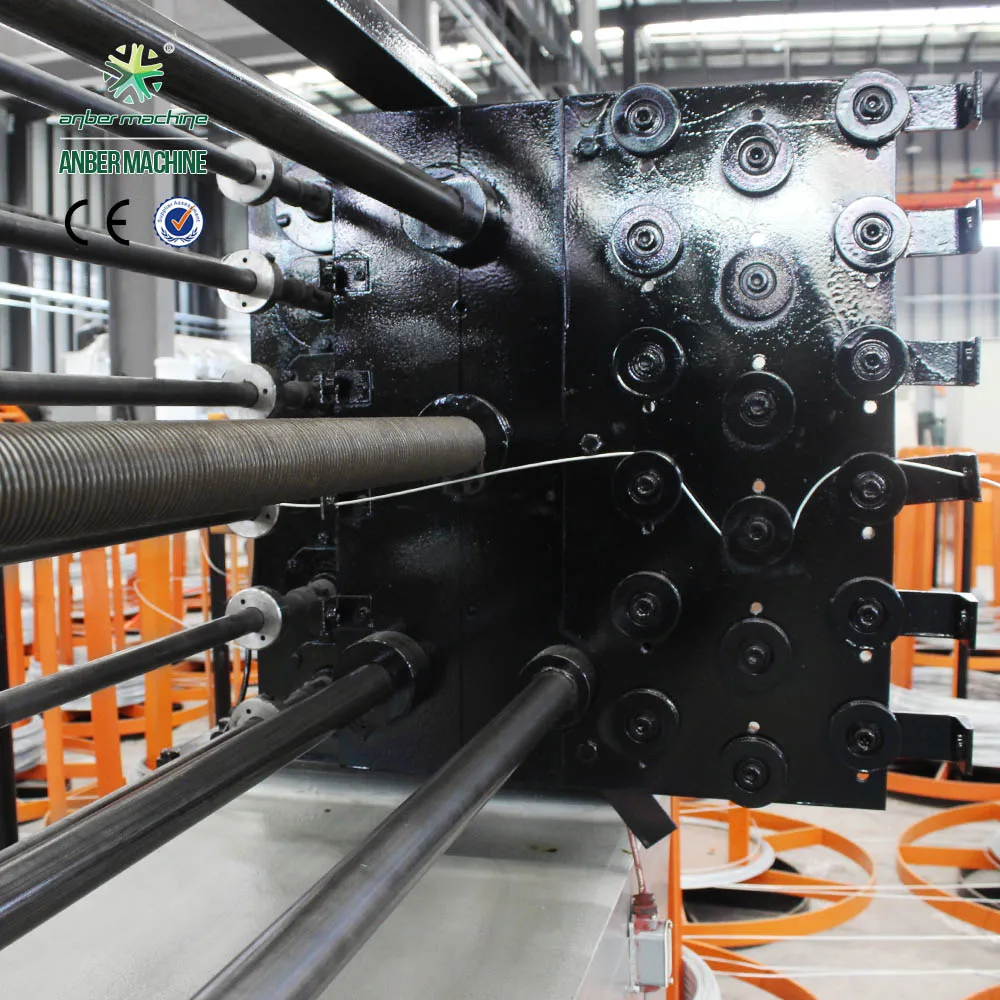

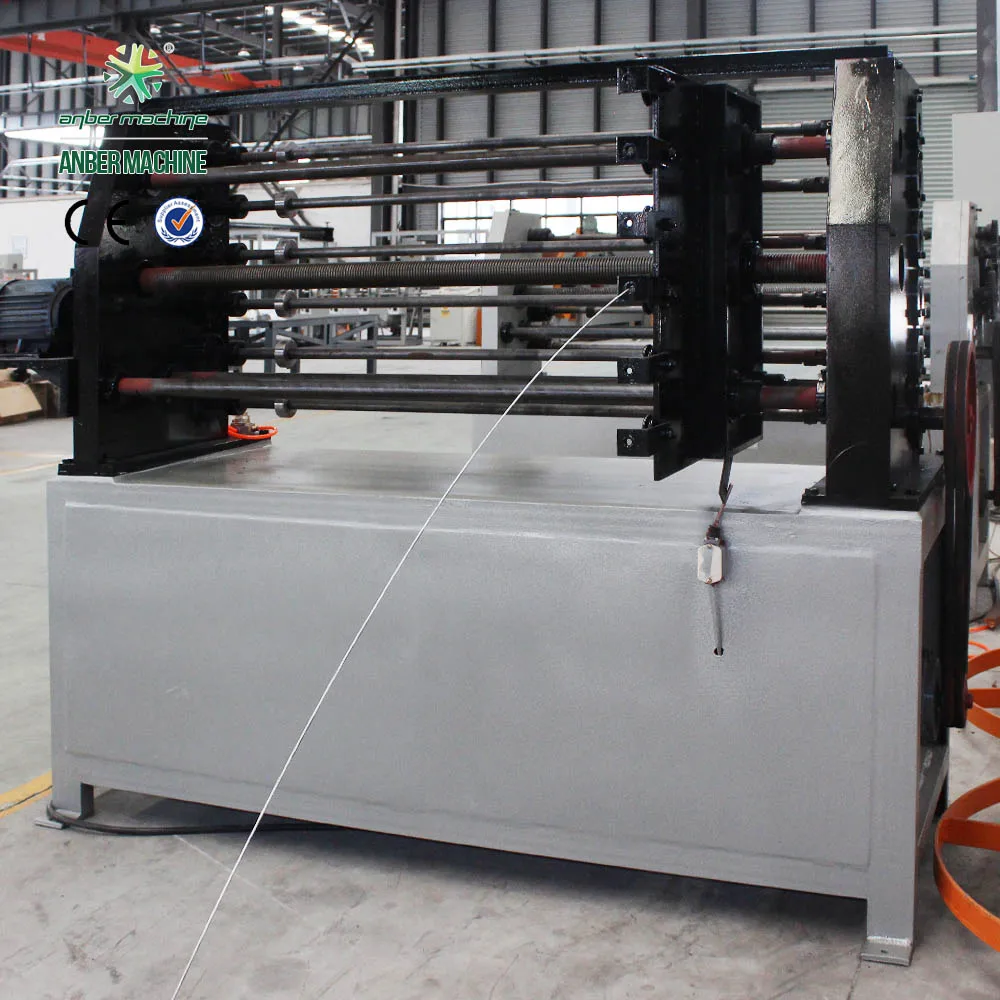

PRODUCTS SHOW [Hexagonal Gabion Mesh Spring Coiling Machine]

ABOUT DELIEVERY [spiral coiling machine   spiral wire coiling machine ]





OUR EXHIBITION [multi die continuous wire drawing machine]

OUR HONOR [multi die continuous wire drawing machine]



— FAQ  [deadbeat wire drawing machine, multi die continuous wire drawing machine]

1. How long will your engineer reach our factory?

Within one week after machine arrival your factory.



2. How many days will you finish installing ?

Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.



3. What should we charge for your engineer?

You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.



4. How long is your machine's warranty period?

All our machine have one year guarantee, starting from the machine finished installation.



5. How could we do after one year warranty period?

We can also do service for you, but you need pay for spare parts and engineer's cost.



6. How could we do if the parts broken within warranty?

We would express the free replacement parts during the warranty date.



7. Does your engineer understand English?

Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.



8. How do we solve the machine problem after your engineer leaving?

Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
