Metal lath and Brickwork mesh machine

  • >=1 Sets
    US $180000.00
Model Number:
ABE-ZDPT-01
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ABE
After-sales Service Provided:
Engineers available to service machinery overseas
Rolling Speed:
12rpm
NO. of operators:
Two
Approx. weight (Total weight):
4 tons
Machine Guard:
yes
Machine Mechanism:
Rotary
Line direction:
Left to right
Supply Ability
Supply Ability:
99 Set/Sets per Month
Packaging & Delivery
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 90 To be negotiated
Product Description

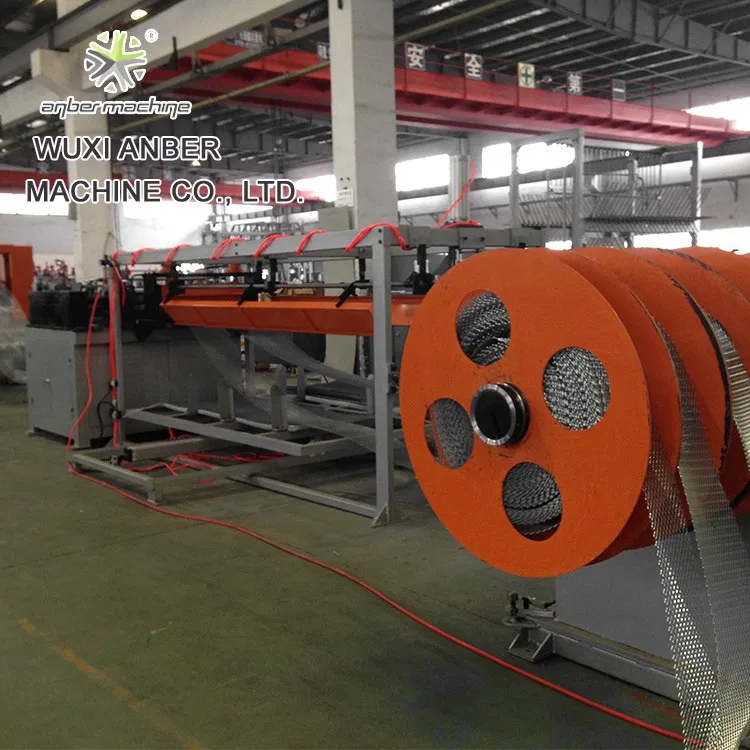

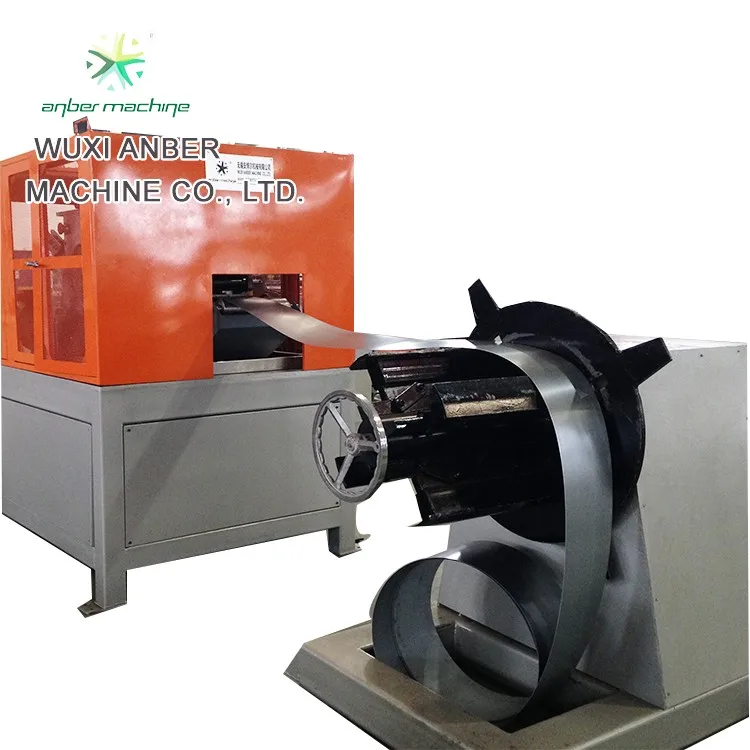

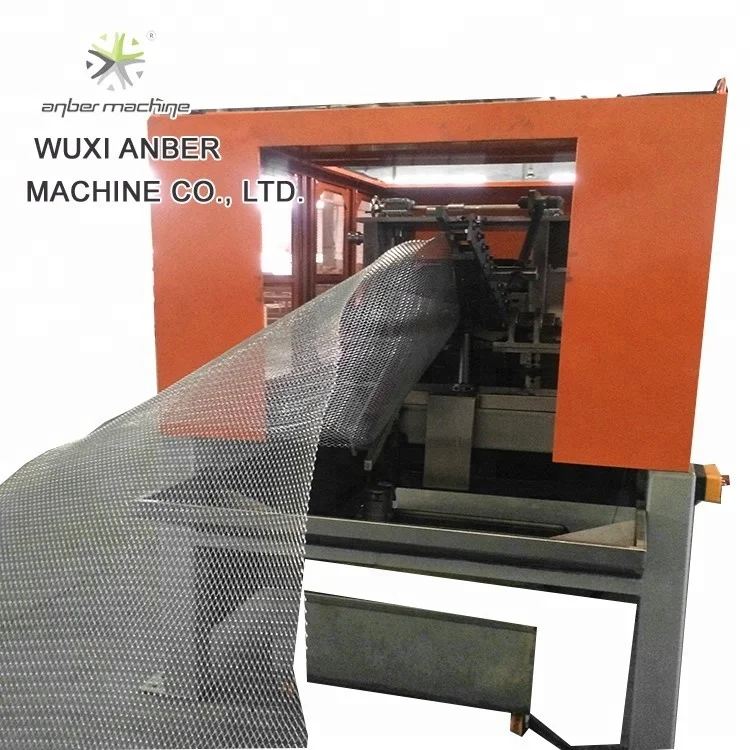

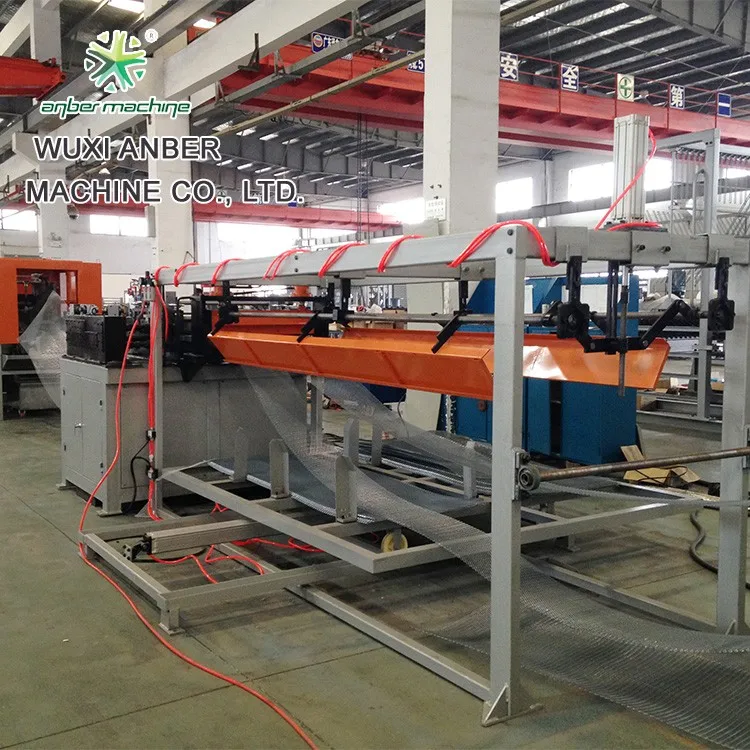

Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.

Product Name
Diamond mesh machine
Rolling Speed
12rpm
NO. of operators
Two
Approx. weight(Total weight)
4 tons
Total power requirement
12kw
Compressed air requirement (cft/min.)
0.5M3
Machine Guard
yes
Machine Mechanism
Rotary
Line direction
Left to right
Products Show
Related Products
Item
Name
Parameter
1
Inner diameter
500mm, adjustable
2
Outer diameter
1000mm
3
Loading weight
Loading weight of each side is 1t
4
Machine size
2650x1970x1620mm
5
Weight
1260Kg
6
Two sides
Each rotation 180°
Item
Name
Parameter
1
Outer diameter of cutter
Φ263mm
2
Blade repaired capacity
3 mm
3
Speed or roll and cutting
12m/min
4
Motor
Power:4kw, Voltage: 380V, Rotation speed: 1450r/min
5
Machine Size
2220x1510x1810mm
6
Weight
2352Kg
Item
Name
Parameter
1
Diameter of roll
63mm
2
Straightening roller QTY
13 straightening rollers
3
Motor
Power:3kW, Voltage:380V,
4
Reduce speed machine
JZQ200--i=20.54
5
Size of machine
1800x1665x1725mm
6
Weight
1554Kg
Item
Name
Parameter
1
Product size
700x3000mm
2
Loading weight
1t
3
Loading height
500mm
4
Size of machine
3610*2900*1620
5
Weight
586Kg
Item
Name
Parameter
1
Inner diameter
120mm
2
Outer diameter
800mm
3
Loading weight
300Kg
4
Motor
Power: 1.5kw, voltage: 380V, 2 sets
5
Machine size
3240x1770x1610mm
6
Weight
1420Kg

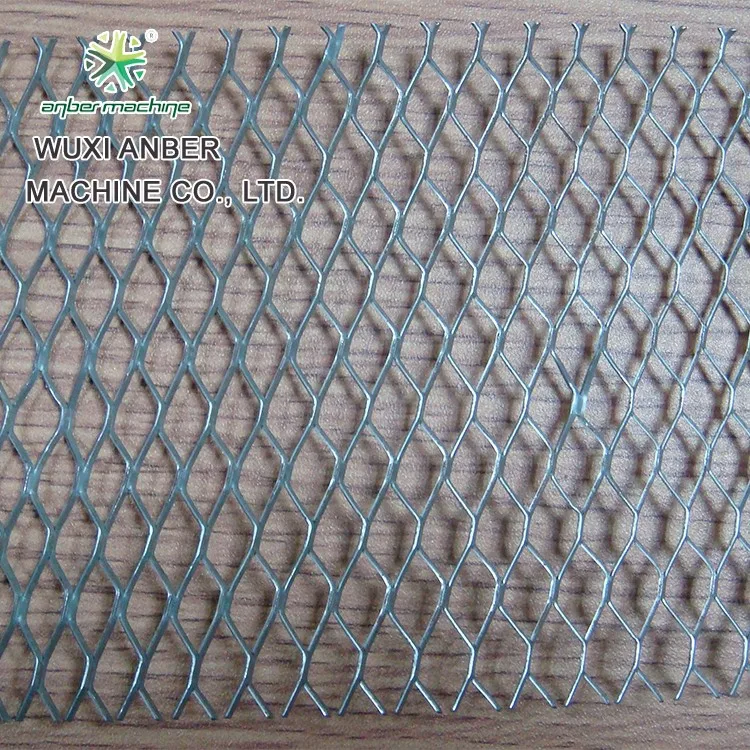

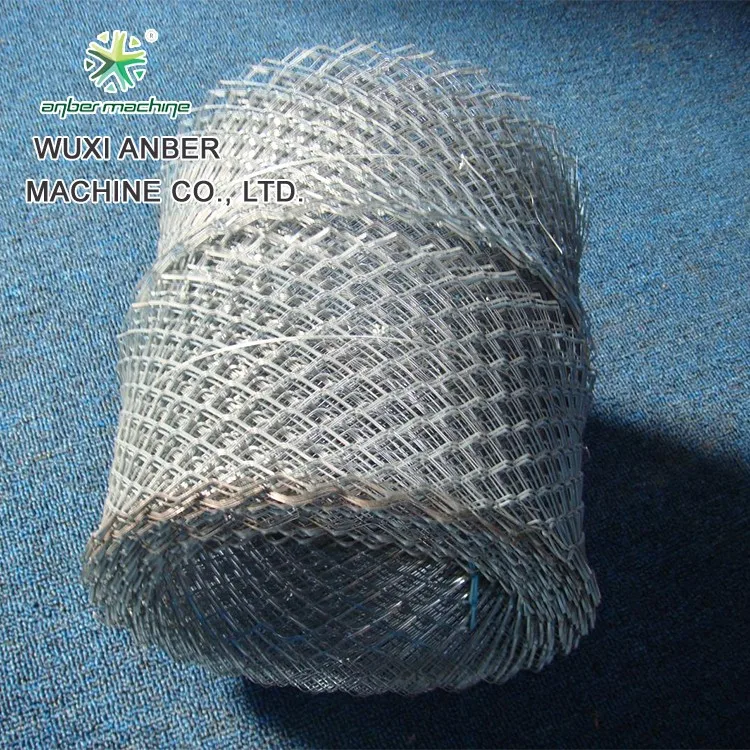

Finished Products
