Aluminum Expanded Metal Facade Anti-Corrosion Appealing Strong Light

  • 1000 - 9999 Pieces
    US $10.00
  • >=10000 Pieces
    US $0.50
Model Number:
ABE-12.5/7.5/1.0-M
Key Company Capacity
Production Capacity >
  • Employees: 101 - 200 People
  • Factory Size: 5,000-10,000 square meters
  • No. of Production Lines: 3
Research & Design >
  • No.of R&D Engineer: 11 - 20 People
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 71% - 80%
  • No. of Employees inTrade Department: 11-20 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
abe
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
99 Set/Sets per Month
Packaging & Delivery
Port
shanghai
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(day) 99 To be negotiated
Product Description

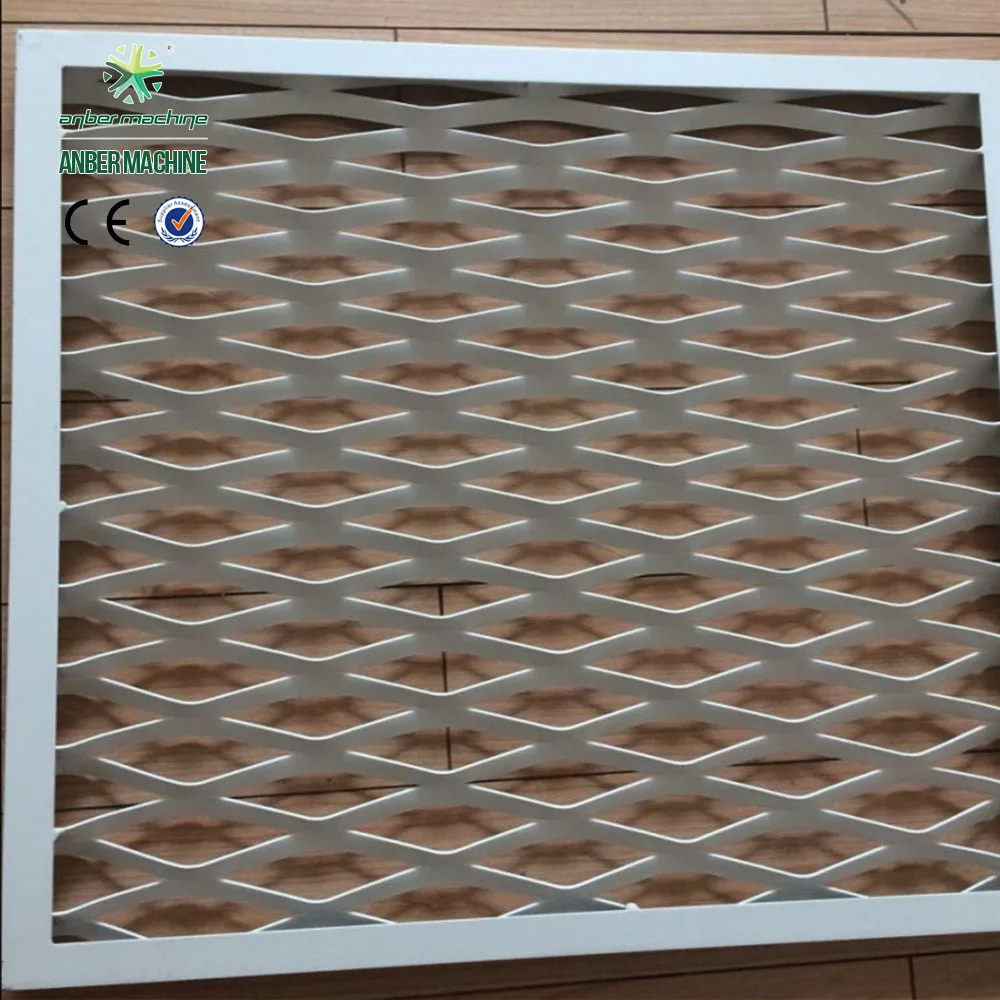

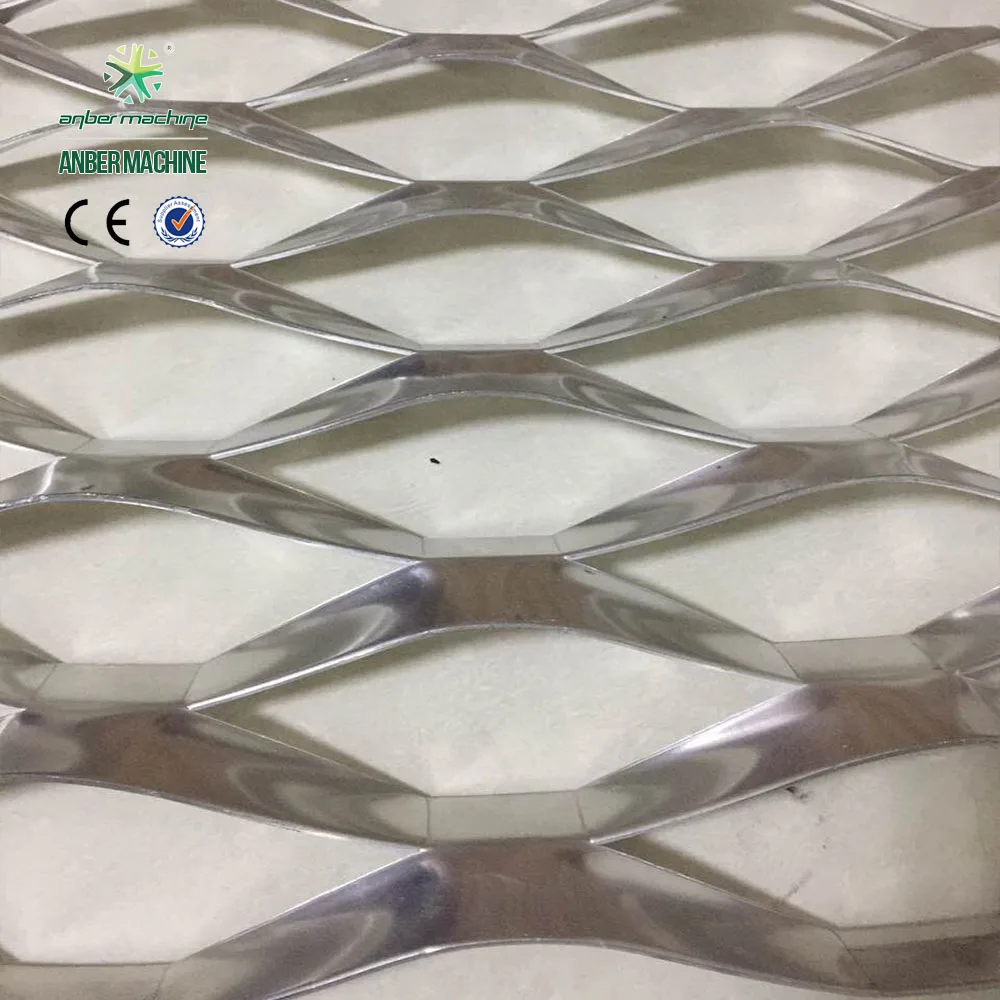

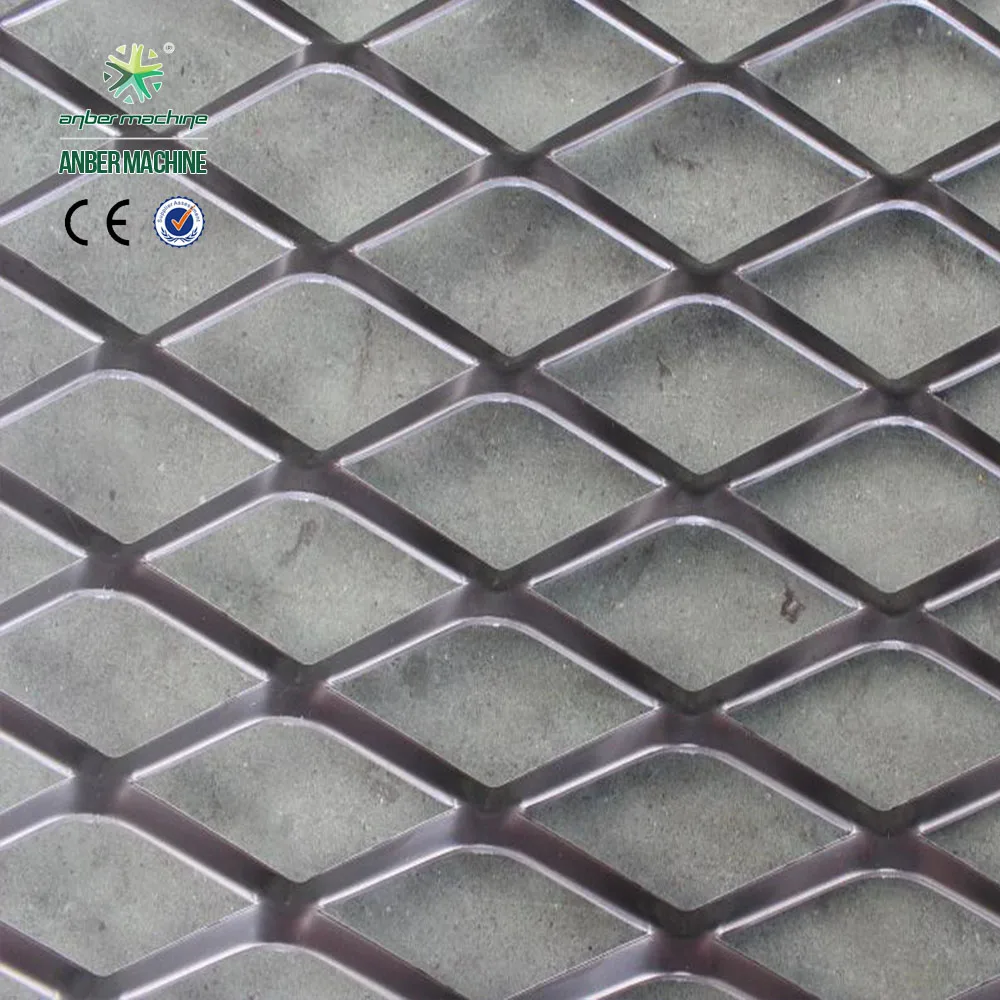

Aluminum expanded metal facade mesh is formed from a piece of metal and creating different shaped holes in one step, such as diamond, hexagonal, square, etc. Aluminum expanded metal facade mesh is widely used in exterior facade of buildings, for example dining hall, airport access, shopping mall, theater, museum, exhibition halls, concert halls or other larger buildings. Aluminum expanded metal mesh with the advantages of light weight and excellent corrosion resistance is the most commonly used as facade. It with non-slip surface and larger openings has good ventilation, which can provide a comfortable environments. Besides, it with various colors has aesthetic appeal, so it is the best choice for decorating exterior facades.

The main function of facade cladding is the protection of the building against the changes in weather conditions. Open areas in expanded metal also provide good air ventilation. Furthermore facade cladding represent an important decorative value.

Our wide range of colors, materials and openings of expanded metal products gives the architects limitless possibilities to express their own style in variety of their projects. Such as shopping malls, headquarters, car parking, train stations, hospitals, gardens, apartment buildings, private houses etc,.

Features of Aluminum expanded mesh for building facade

1. Advanced technology of the expanded metal stretching technology, high technical content

2. Visual permeability to create a large sense of space

3. Light weight, good strength, weather ability and corrosion resistance

4. Factory molding, construction site directly installed

5. Installation and maintenance of convenient & cost savings

6. Easy to install

7. Attractive appearance


Specification of aluminum expanded metal facade

Materials: aluminum, aluminum alloy

Hole shapes: diamond, hexagonal, square

Colors: silver, red, yellow, black, white, etc

Thickness: 0.5 mm – 5 mm

LWM: 4.5 mm – 100 mm

SWM: 2.5 mm – 60 mm

Width: ≤ 3 m

Package: iron pallet or wooden box


Typical


TECHNICAL DETAILS

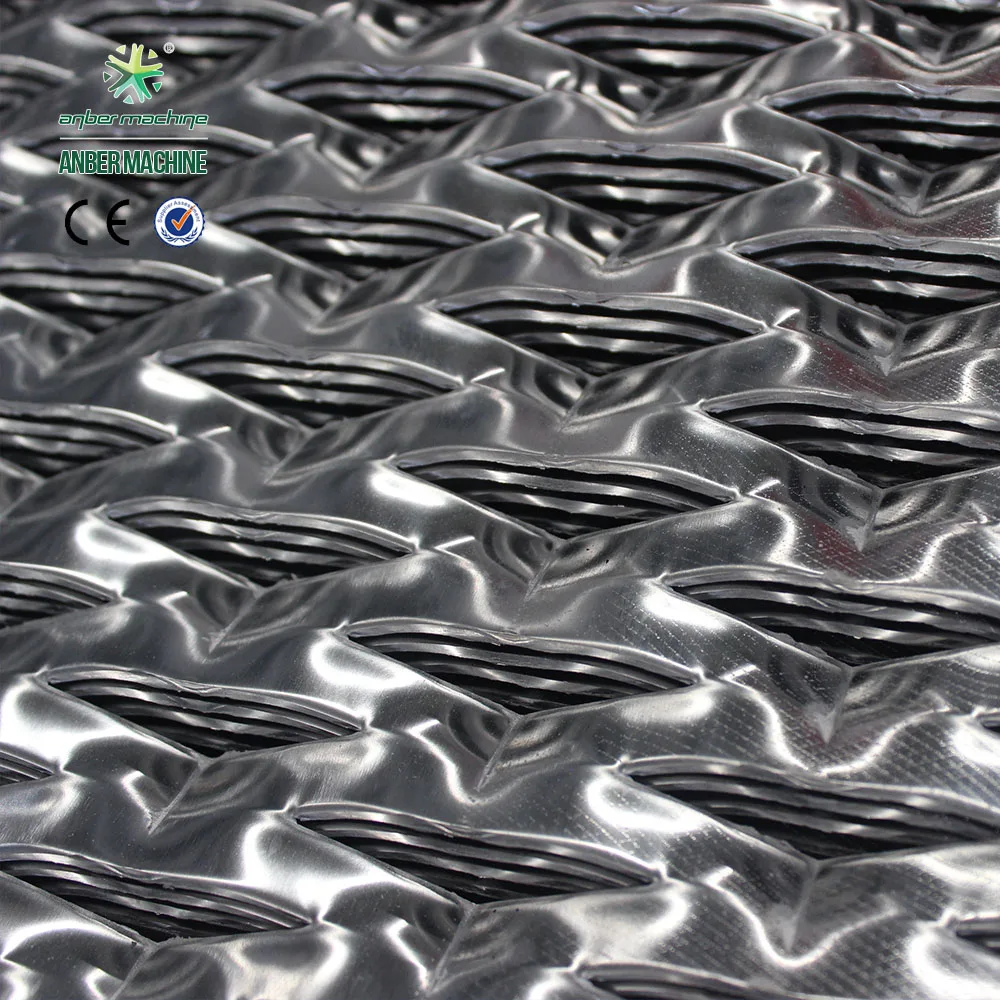

MARK NO: EM-85.5/25/11-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 2
LWD(mm): 85.5
SWD(mm): 25
Strand width(mm): 11

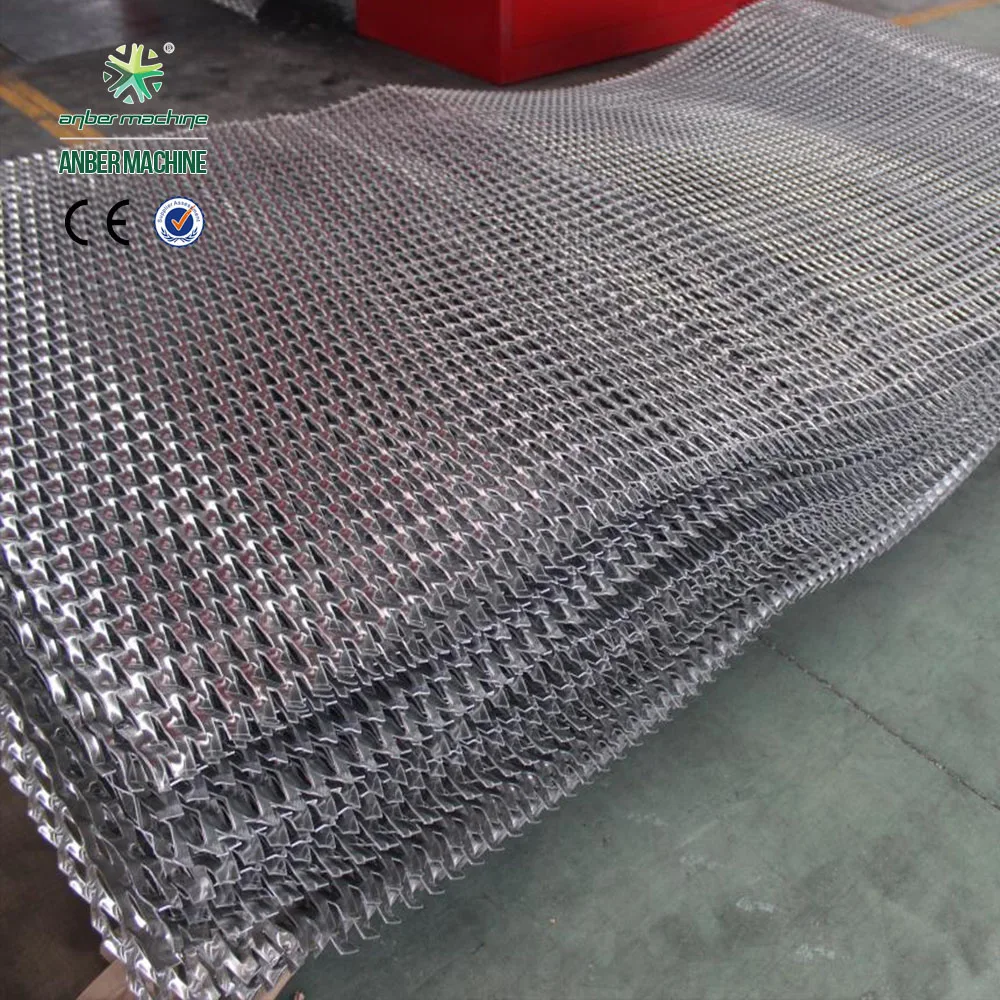

Mesh type: Pyramid expanded mesh



TECHNICAL DETAILS

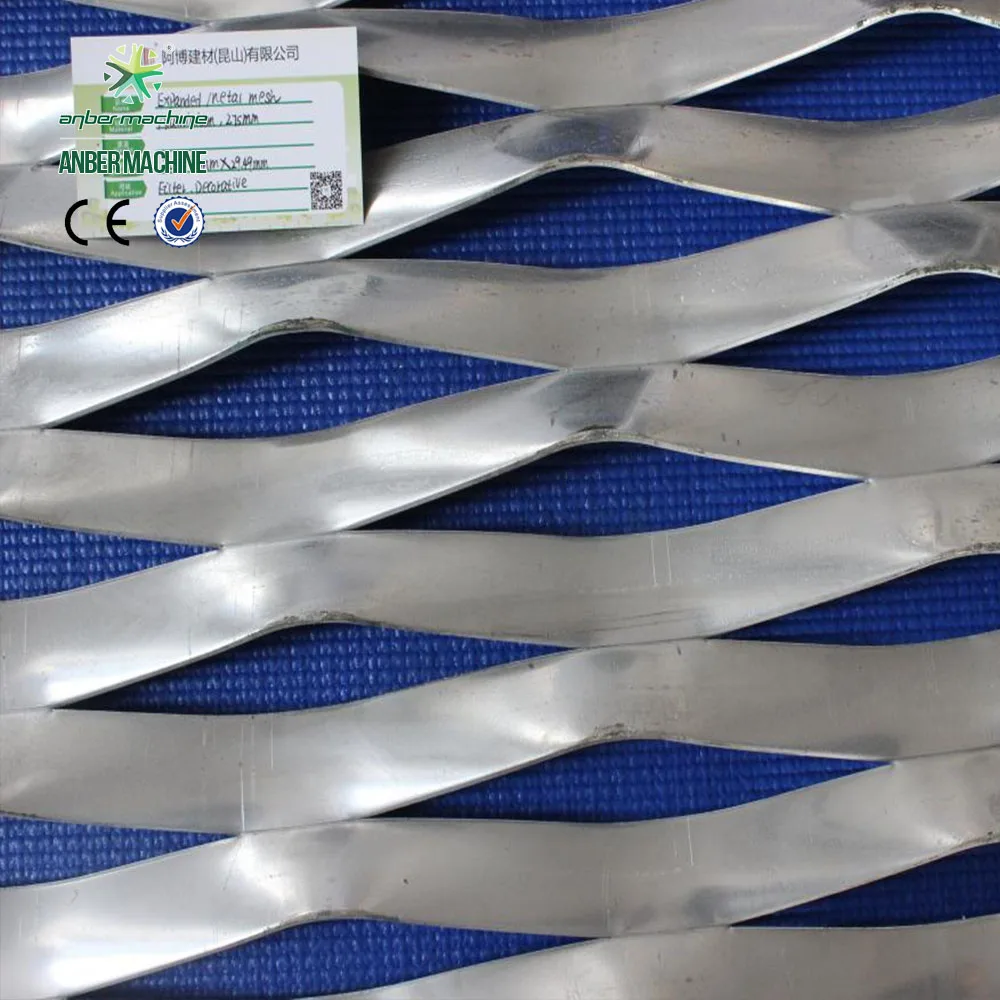

MARK NO: EM-136/49/15-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 2
LWD(mm): 136
SWD(mm): 49
Strand width(mm): 15
Weight: 3.31 kg/m2
Nom. Open Area: 38.78 %
Expansion factor: 1.63
Mesh type: Diamond expanded mesh



TECHNICAL DETAILS
MARK NO: EM-115/26/19-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 1.6 / 2
LWD(mm): 115
SWD(mm): 26
Strand width(mm): 19
Mesh type: Pyramid expanded mesh



TECHNICAL DETAILS

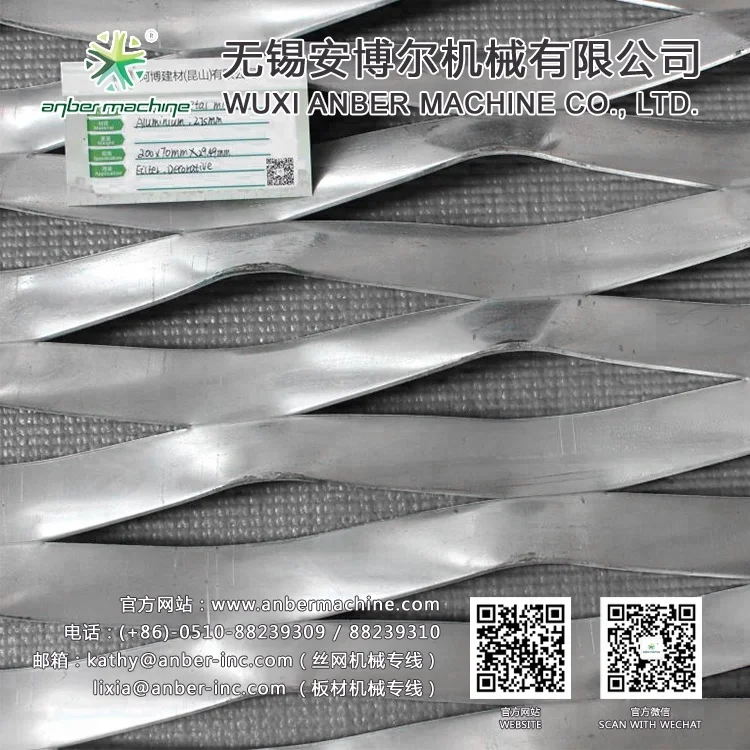

MARK NO: EM-200/70/29-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 1.5 / 2
LWD(mm): 200
SWD(mm): 70
Strand width(mm): 29
Mesh type: Pyramid expanded mesh



TECHNICAL DETAILS

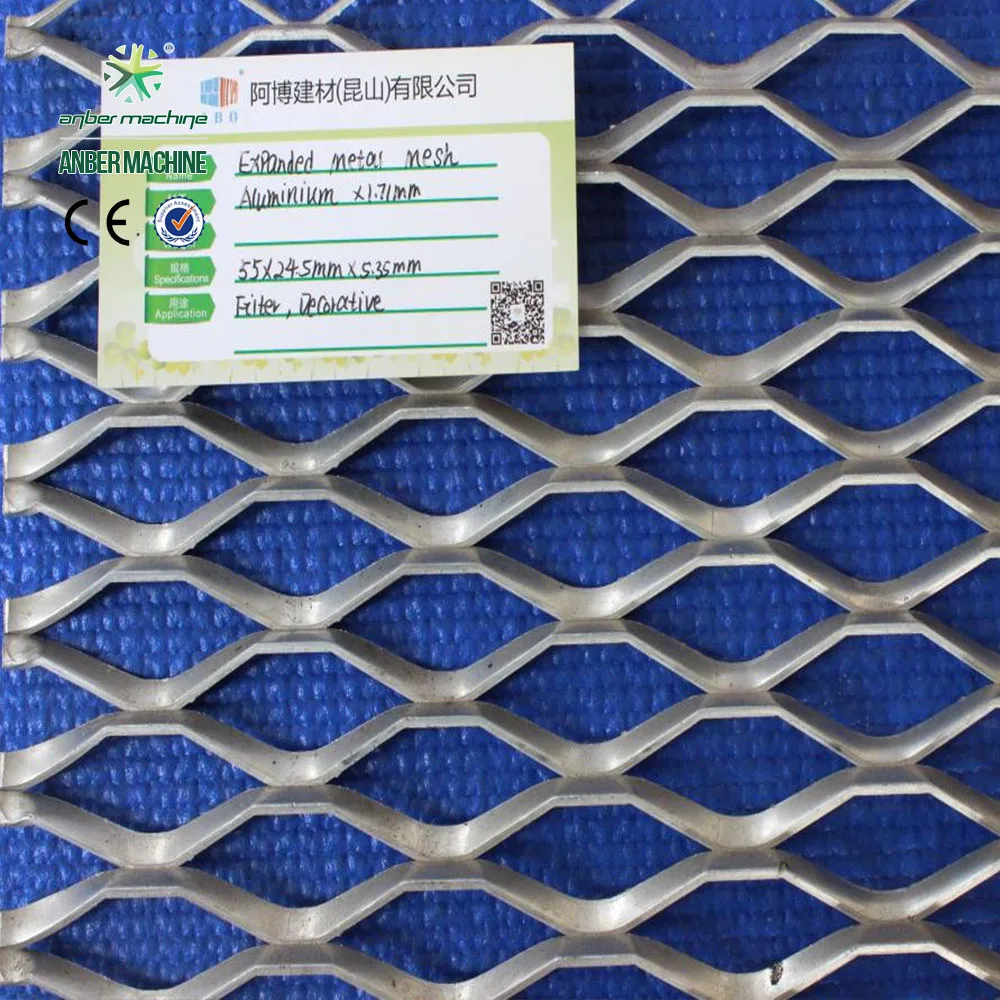

MARK NO: EM-55/24.5/5-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 2
LWD(mm): 55
SWD(mm): 24.5
Strand width(mm): 5
Weight: 2.20 kg/m2
Nom. Open Area: 59.18 %
Expansion factor: 2.45

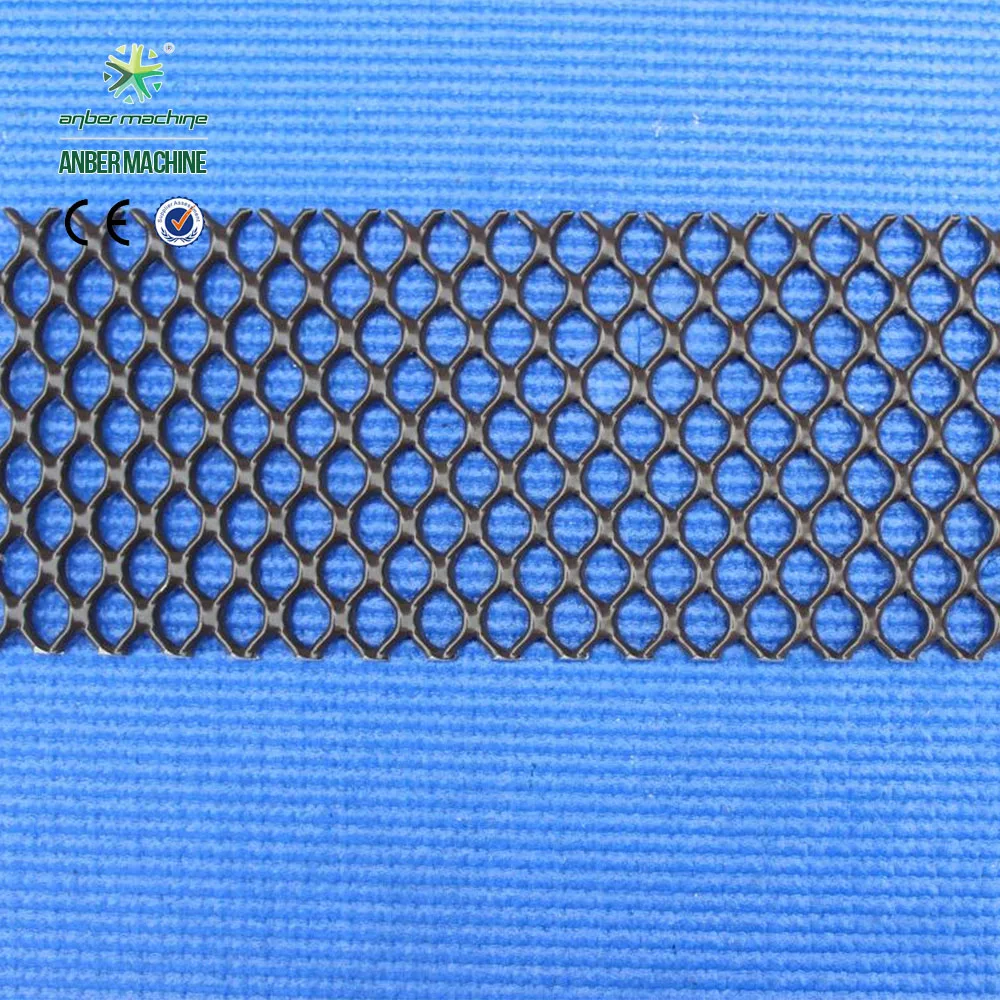

Mesh type: Hexagonal expanded mesh



TECHNICAL DETAILS
MARK NO: EM-62/24/8.5-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 1.7 / 2
LWD(mm): 62
SWD(mm): 24
Strand width(mm): 8.5
Mesh type: Pyramid expanded mesh



TECHNICAL DETAILS
MARK NO: EM-20/14/2.8-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 2
LWD(mm): 20
SWD(mm): 14
Strand width(mm): 2.8
Weight: 2.16 kg/m2
Nom. Open Area: 60.00 %
Expansion factor: 2.50
Mesh type: Hexagonal expanded mesh


TECHNICAL DETAILS
MARK NO: EM-100/50/10-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 2.0
LWD(mm): 100
SWD(mm): 50
Strand width(mm): 10
Weight: 2.16 kg/m2
Nom. Open Area: 60.00 %
Expansion factor: 2.50
Mesh type: Diamond expanded mesh


TECHNICAL DETAILS
MARK NO: EM-40/16/2.8-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 2.0
LWD(mm): 40
SWD(mm): 16
Strand width(mm): 2.8
Weight: 1.89 kg/m2
Nom. Open Area: 65.00 %
Expansion factor: 2.86
Mesh type: Hexagonal expanded mesh


TECHNICAL DETAILS
MARK NO: EM-80/27/16-A
Material: Aluminum
Max. Width of material(mm): 2000
Thickness(mm): 1.5 / 2.0
LWD(mm): 80
SWD(mm): 27
Strand width(mm): 16
Mesh type: Round expanded mesh

Applications
Our Company

Expanded metal is truly a versatile product. Ferrous and non-ferrous metal sheet can be expanded into a wide range of mesh styles. There are standard expanded metal styles and numerous variations in strand width and opening sizes can be produced to create whatever architectural or industrial pattern is required. Expanded metal is also produced in a flattened form which is created by rolling standard or raised expanded metal.

Expanded metal mesh has a diverse range of properties, which makes it so versatile and appealing for many uses and applications throughout a variety of industries. Expanded Metal Mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanded metal machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.

Expanded Metal Mesh Production Process

1. Sheets or coils or metal are fed into the expanded metal machine. A little metal can create a lot of mesh, adding value and saving resources and money.

2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.

3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.

4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
Our manufacturing expanded metal mesh is used in below industry:

Building Construction

Machine Guard Manufacturers

Auto mobile Industry

Air Condition Industry

Agricultural Machinery

Food Processing Industry

Filter Industries

Wuxi Anber Machine Co.,Ltd is a professional manufacturer and trader specialized in research ,development and production of wire mesh machine. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Expanded metal mesh machine is one of our hot-sale products.

The expanded metal mesh machineis devided into the light type expanded metal mesh machine, middle type expanded metal mesh machine and heavy duty metal mesh machine.

1. Light type expanded metal machine:

ABE-1.0-600(6.3T)

ABE-1.0-1000(16T)

ABE-1.5-1250(25T)

new type : high speed expanded metal mesh machine

ABE-GS25-1250(25T)

ABE-GS40-1250(40T)

ABE-GS60-1250(60T)

2. Middle type expanded metal mesh machine:

ABE-2.5-1500(40T)

ABE-4.0-1300(60T)

3. Heavy duty expanded mesh machine:

ABE-6.0-2000(160T)

ABE-6.0-2500(100T)

ABE-6.0-3000(160T)

ABE-8.0-2500(260T)

ABE-8.0-3000(260T)

We also can produce accessory machines for the expanded metal mesh machine, such as decoier, recoiler, two-roller flattening machine, four-roller flattener machine, expanded mesh leveling machine, three-in-one expanded mesh leveling, slitting and cutting mahicne. Besides, if you have some special requirement, we can design the full production line especially for you.
