brickwork reinforcement mesh machine

FOB Reference Price:Get Latest Price
US $42,000-58,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
ANBER
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
In bulk or in wooden case or according to customer's requirement.
Port
SHANGHAI
 Product Description



Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.Self furring lath production line is used to produce the self furring lath which is applied to plaster and reinforcing the wall, the production line contains de-coiler, expanded main machine, roller profiling machine with hydraulic shearer and collecting table.





Product Name
Diamond mesh machine
Rolling Speed
12rpm
NO. of operators
Two
Approx. weight(Total weight)
4 tons
Total power requirement
12kw
Compressed air requirement (cft/min.)
0.5M3
Machine Guard
yes
Machine Mechanism
Rotary
Line direction
Left to right





IMG_3823IMG_0701IMG_0702IMG_3829



  Related Products









IMG_0701

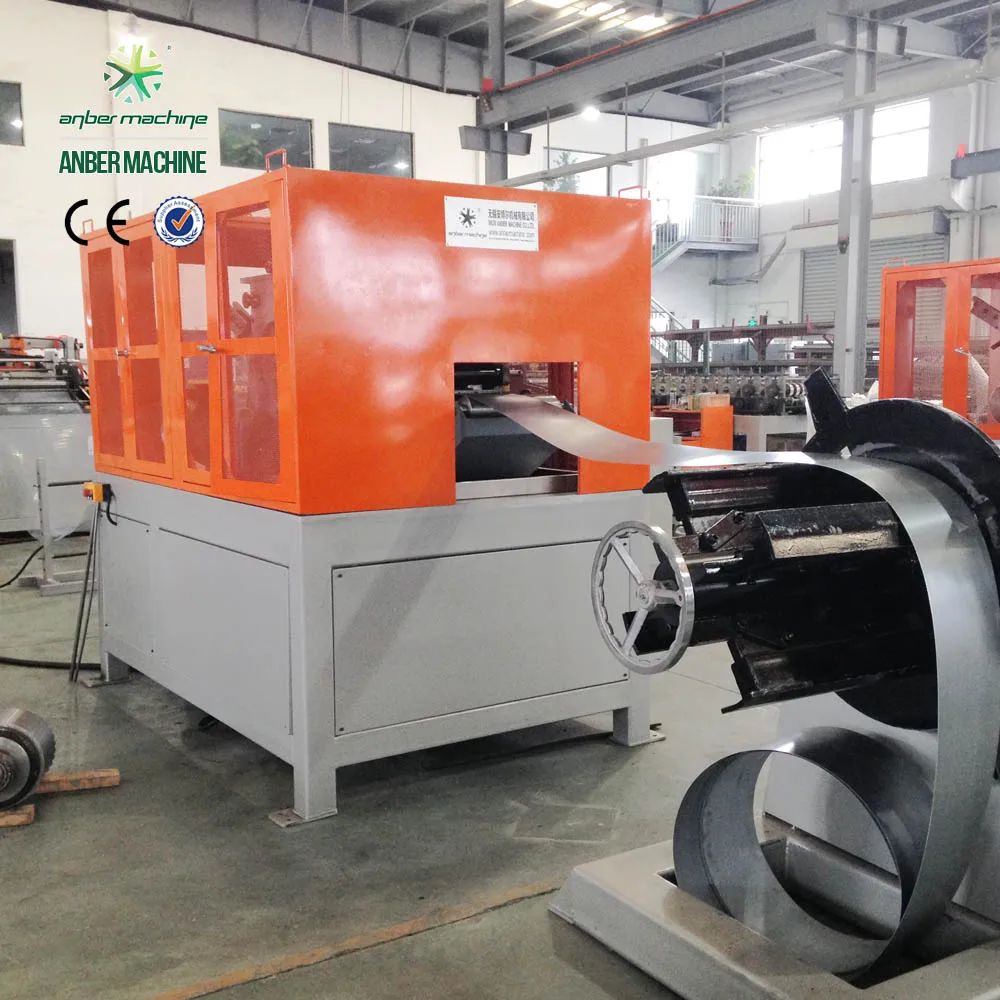

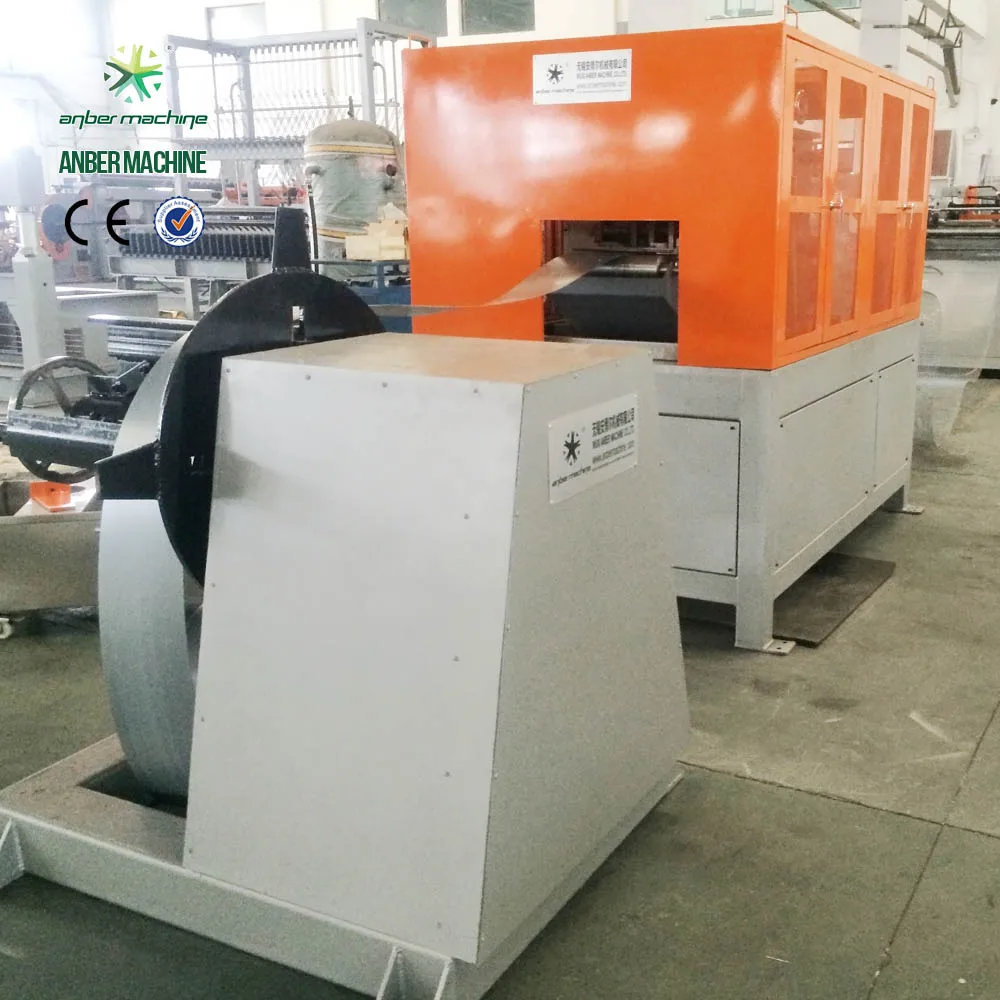

1. Decoiler



Name:Parameter

Inner diameter: 500mm, adjustable

Outer diameter: 1000mm

Loading weight: Loading weight of each side is 1t

Machine size: 2650x1970x1620mm

Weight: 1260Kg

Two sides: Each rotation 180°



IMG_3823



2. Roll Shearing/expanding



Outer diameter of cutter: Φ263mm

Blade repaired capacity: 3 mm

Speed or roll and cutting: 12m/min

Motor:Power: 4kw, Voltage:  380V, Rotation speed: 1450r/min

Machine Size : 2220x1510x1810mm

Weight: 2352Kg



IMG_0712

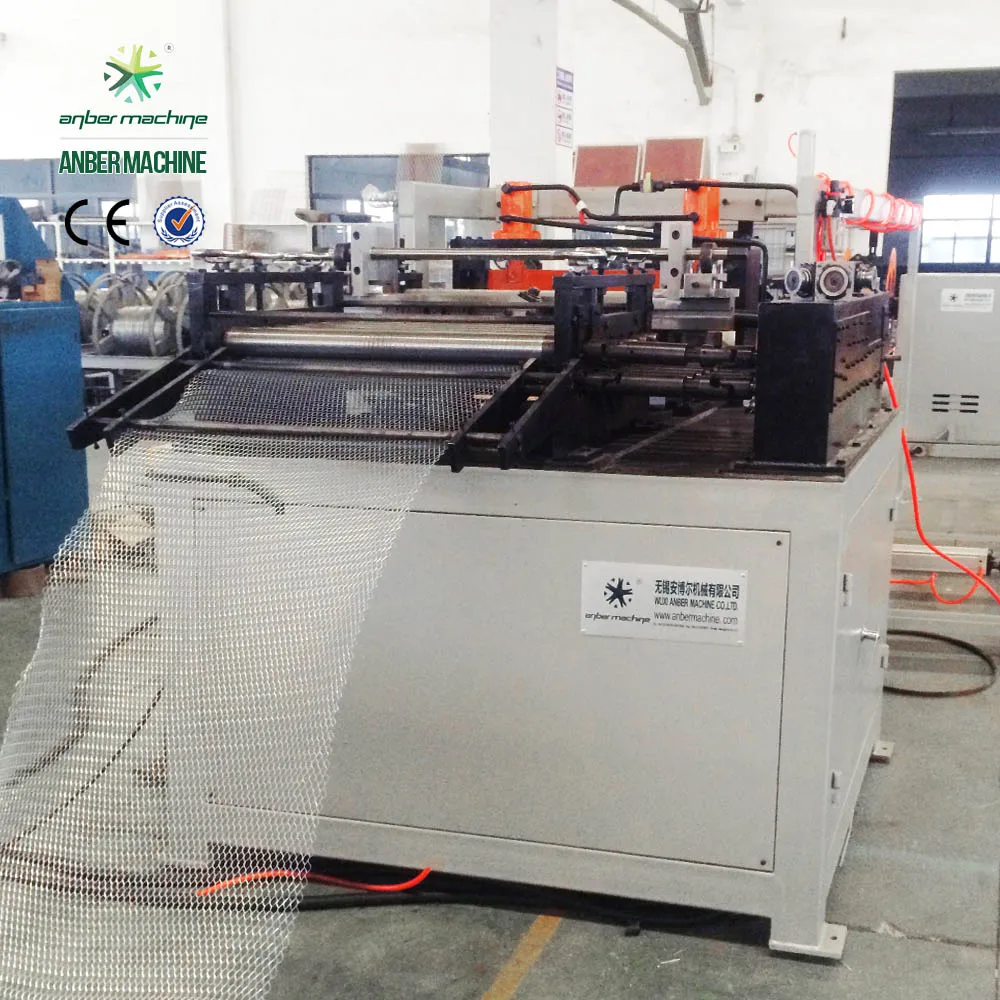

3.Straightening and slitting machine



Diameter of roll: 63mm

Straightening roller QTY: 13 straightening rollers

Motor:Power: 3kW,  Voltage:380V,

Reduce speed machine: JZQ200——i=20.54

Size of machine: 1800x1665x1725mm

Weight: 1554Kg
 IMG_3829

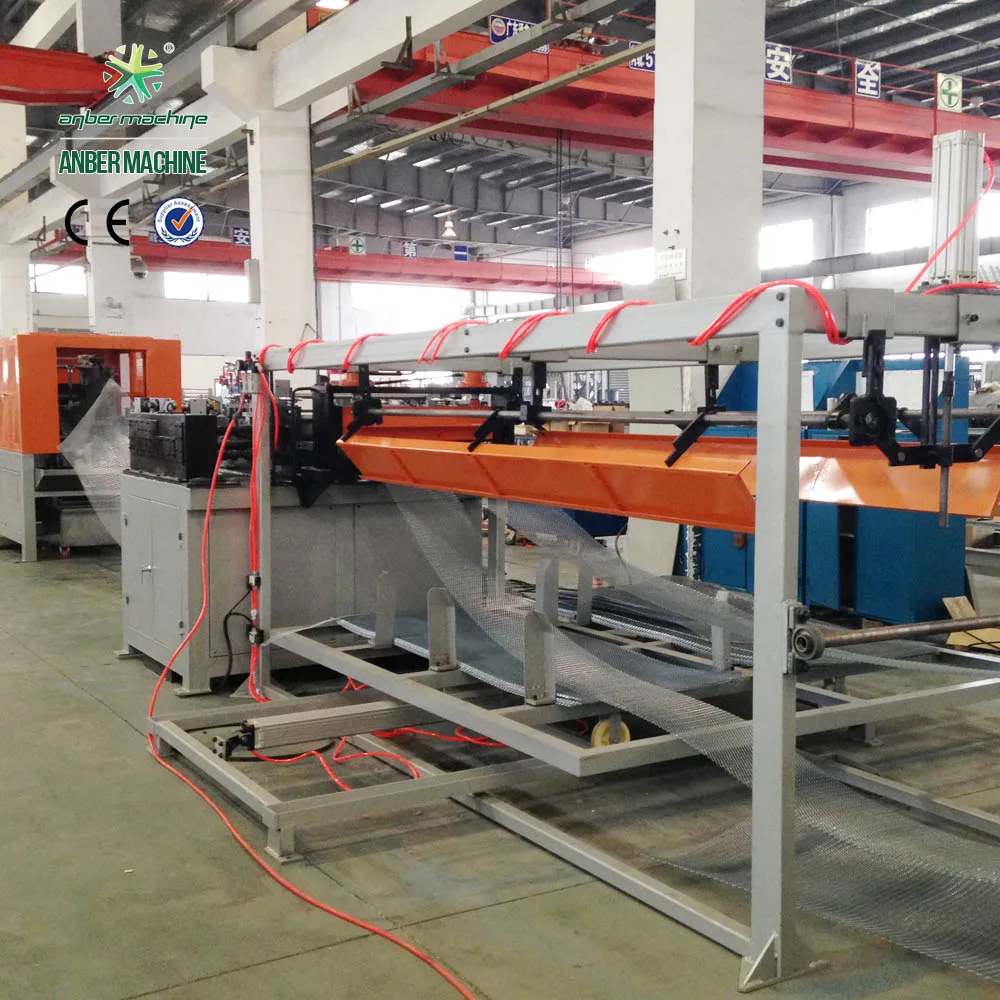

4.Stacker



Product size: 700x3000mm

Loading weight: 1t

Loading height: 500mm

Size of machine: 3610*2900*1620

Weight: 586Kg

 IMG_0702

5. Double head re-winder



Inner diameter:120mm

Outer diameter:800mm

Loading weight:300Kg

Motor:Power: 1.5kw, voltage: 380V, 2 sets

Machine size :3240x1770x1610mm

Weight:1420Kg







 Certifications



2





 Our Company



(1)

Business type: manufacturer and seller of kinds of wire mesh and fence making machine
Service: OEM service
Primary competitive: low in price and maintainance, high in quality and performance.

Products list:
Construction mesh making machine

Hi-rib lath priduction line,high speed rib lath line, rib lath line, metal lath and birckwork mesh line, high speed angle bead line, angle bead production line, bieckwork mesh production line, plaster stop bead peroduction line Architrave bead priduction line, Control joint bead production line

Expanded mesh machine

Heavy duty expanded metal mesh machine, expanded metal fence machine, diamond expanded mesh machine ETC.

Welded wire mesh machine

welded mesh fence/panel machine, welded mesh machine for construction, reinforcement mesh welding production line, space welded mesh machine for buildings

Wire drawing machine

iron wire drawing machine, stainless steel wire drawing machine, tin wire drawing machine, copper wire drawing machine, rod break down

Other wire mesh machine: razor barded wire machine, barded wire machine, gabion mesh machine, gabion mesh fence machine and full automatic gabion mesh production line, hexagonal wire netting machine, chain link fence weaving machine, automatic chain link fence weaving machine, semi-automatic chain link fence weaving machine, hinge joint knot field fence machine and perforated metal mesh machine.

PVC coated production line: for the fence, galvanized coating production line for the fence, wire PVC coated line

Our factory is located in Wuxi, China. It is famous for its good wire mesh machine and wire mesh products. And was named "AAA" factory by our National Industrial Authority.

We hope to have chance to establish good business relationship with all the friends who are interested in our products. We will expect your visit to our factory.



 Packing & Delivery



IMG_5240     IMG_4126





 FAQ



Q:Where is ABO Building factory?
We are in Kunshan, 1hour driving from Shanghai airport.

Q:What is your factory strength?

All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

Q:Are you a trading company or manufacturer?
We a manufacturing and trading combo. Anber manufacture the machine, like angle beads machine, rib lath, etc, we ABO sell finished products, like metal lath and beads.

Q:What is your available port for shipment?
Shanghai seaport.

Q:What about the payment Terms?
Normally deposit 50% in advance.
